1200 x 800 x 950 System 2000-H SmartFix®-Kufen EuroStack 128 SmartFix®

System 2000 offers perfect storage and transportation solutions with a wide range of applications. Our patented and multi-award-winning SmartFix® container equipment firmly connects all components. Setting up a container has never been so quick and easy.
Download datasheet

All product benefits at a glance

  • One-piece with super-fast folding technology
  • Ideal for high-bay racking and conveyor systems
  • High payloads possible
  • Extremely easy handling
  • Closed pallet deck
  • No loss of individual container parts possible
  • Protection against water and dirt

Highlights

All product benefits at a glance

1

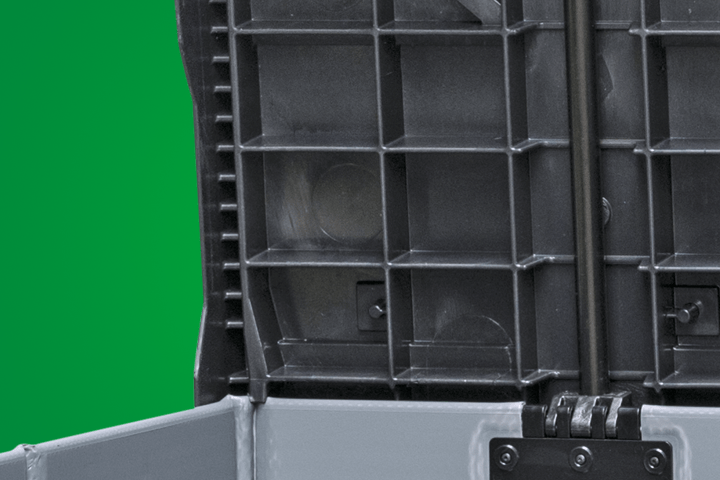

Secure lid guide
  • Recessed guide rails simplify handling - resulting in clean guidance when opening and closing the lid
2

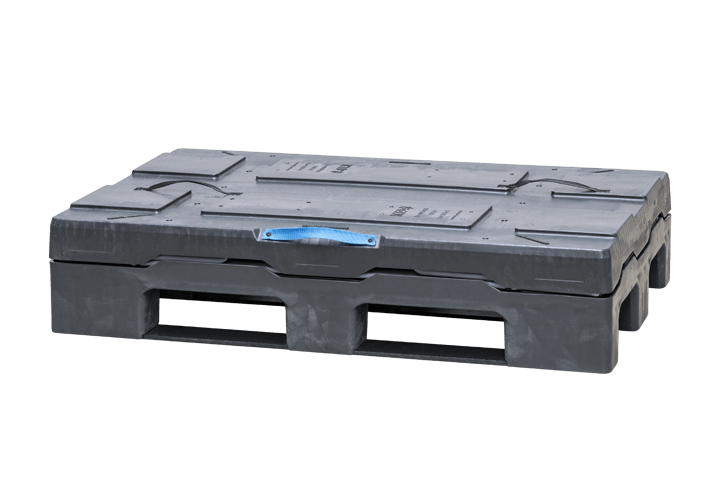

Safe empties unit
  • Interlocking of pallet and lid
  • Protection of the inner ring
  • No container damage due to slipping
  • Safe and stable stacking of containers for full and empty containers
3
Closed pallet deck
  • No floor insert required
  • No soiling
  • Automatic locking
  • Snap-in principle for stable fixation
4

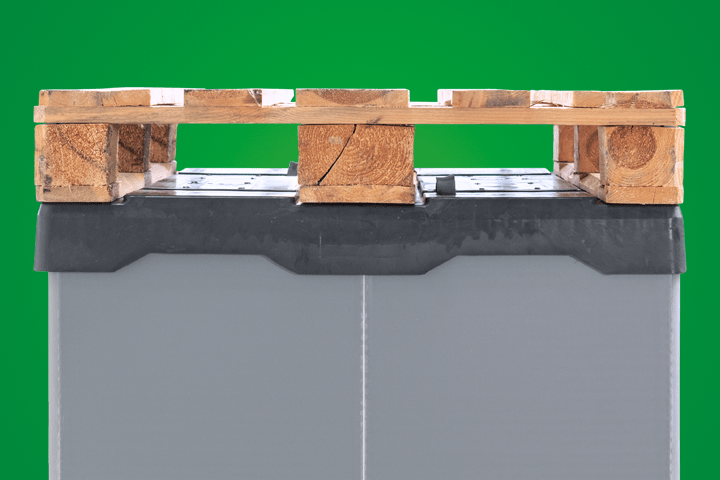

High compatibility
  • Stacking compatible with Euro pallets and VDA lids due to identical basic dimensions
  • Use on conveyor systems on which Euro pallets are used
5

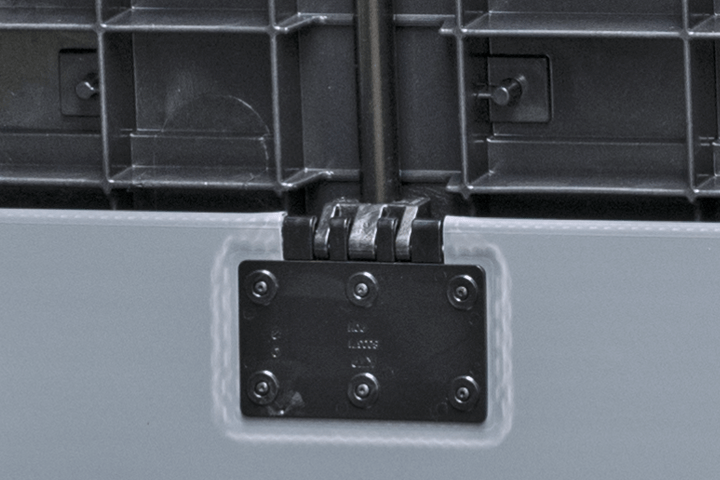

Fixed connection
  • No more individual parts - lid, ring and pallet form a firmly connected unit
  • No loss of container parts

Technical data

  • External dimensions
    1200 x 800 x 950mm
  • Internal dimensions
    1156 x 756 x 747mm
  • Volume
    653l
  • Tare weight
    48kg
  • Empties height
    215
  • Folding system
    Sandwichfaltung
  • High rack (without base)

Loads

  • Payload (max.)
    500 kg
  • Stacking load (max.)
    800kg
  • Stacking factor (with max. payload and stacking load)
    1 + 2

Logistics and transport

  • Return rate
    4
  • Volume reduction
    75%
75% Volume reduction

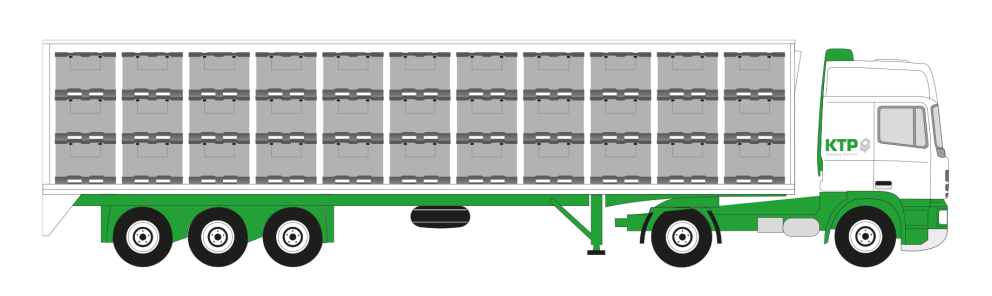

Capacity utilisation in mega-trailer
(13,6 x 2,48 x 3,0 m)

Full: 99

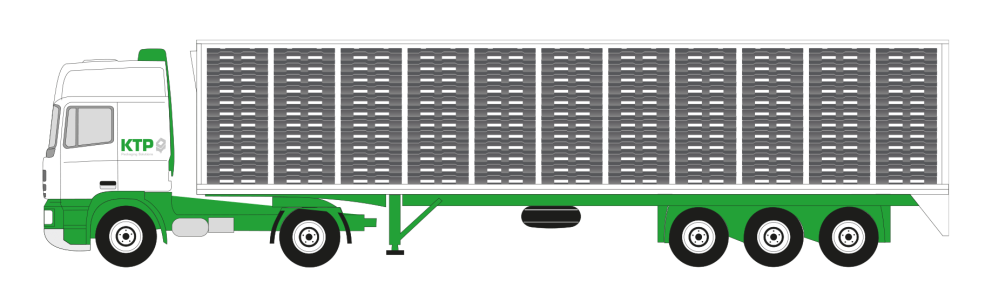

Empty: 396

Storage positions: 33

Composition

Three parts to the perfect transport container

Three become one – the patented and multi-award-winning SmartFix® container equipment turns a three-part container into a single unit. The pallet, ring, and lid are firmly connected to each other. Setting up a container has never been so quick and easy. The KTP Sandwich guarantees durability, protection, volume reduction in empties, maximum ergonomics, and easy handling.

Pallet

  • Material
    PE

Equipment*

  • Closed pallet deck
  • 9 feet
  • Water drainage holes
  • Retractable on 4 sides

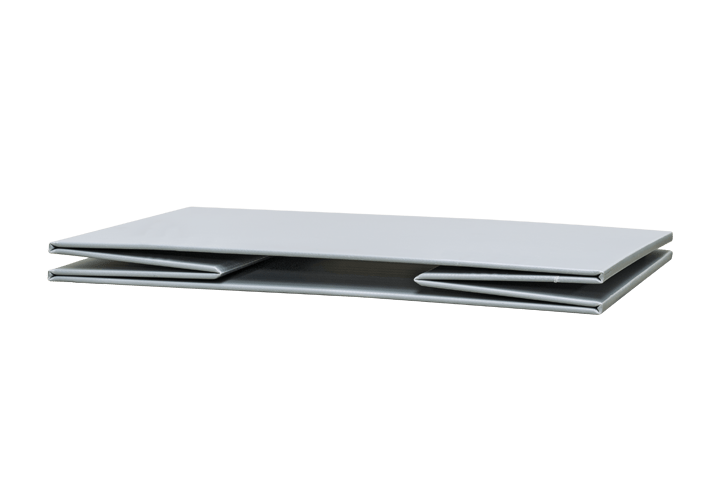

Sleeve

  • Material
    PP
  • Grammage/Strength
    3000 g/m²

Equipment*

  • M-folding
  • 2 document pockets A5
  • 4 recessed recesses for pallet

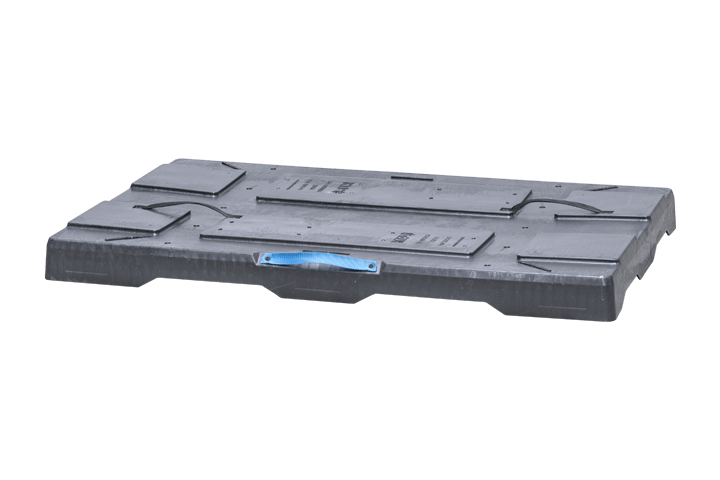

Lid

  • Material
    PE

Equipment*

  • 3 handles (2x black 1x blue)
  • Suspension hook

*optional; further options available

More container options such as additional loading flaps, individual printing, tracking systems and customised inner packaging solutions are available on request – just contact us.
