800 x 600 x 710 System 2000 SmartFix®

System 2000 offers perfect storage and transportation solutions with a wide range of applications. Our patented and multi-award-winning SmartFix® container equipment firmly connects all components. Setting up a container has never been so quick and easy.

Download datasheet

All product benefits at a glance

One-piece with super-fast folding technology
Extremely easy handling
No loss of individual container parts possible
Low container weight

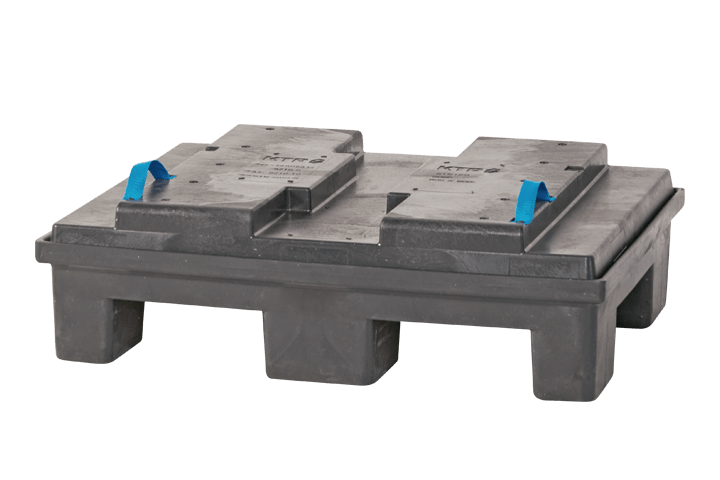

Non-slip sandwich folding
Protection against water and dirt

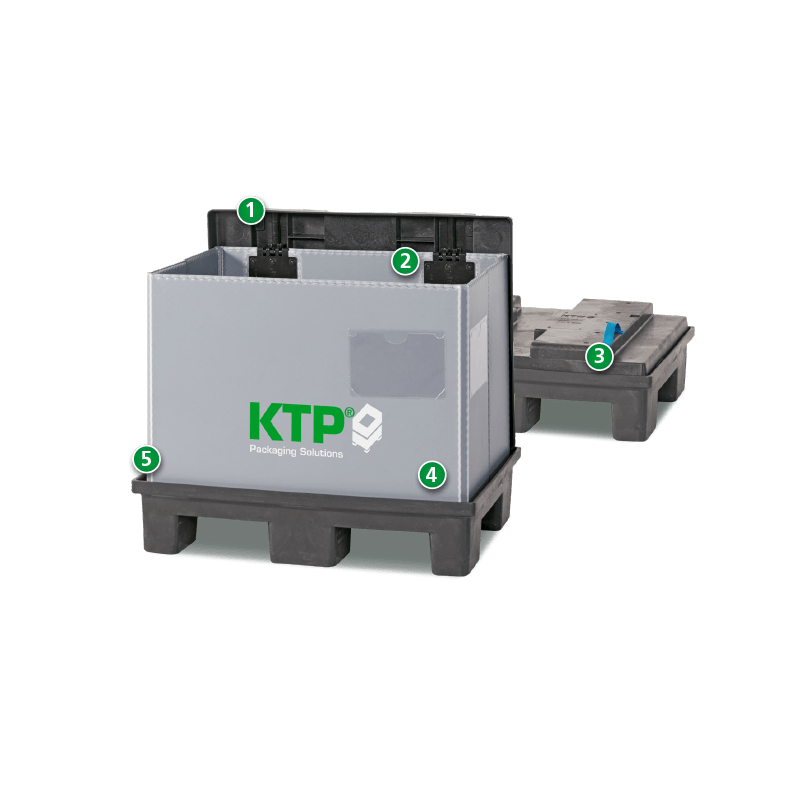

Highlights

All product benefits at a glance

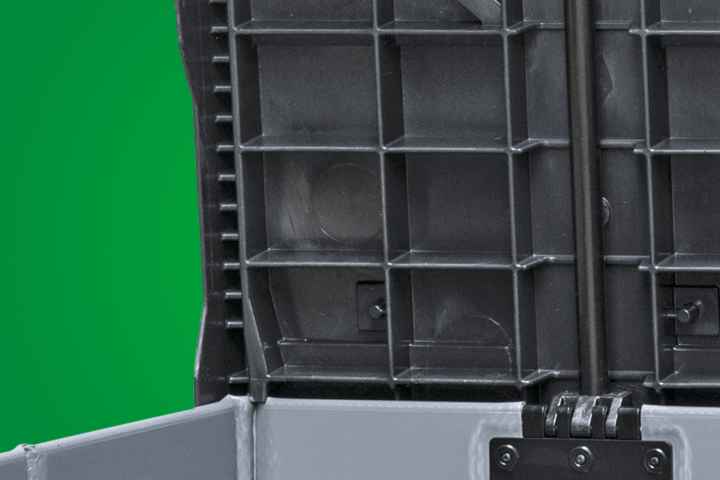

Secure lid guide

Recessed guide rails simplify handling - resulting in clean guidance when opening and closing the lid

A product image of 800 x 600 x 710 System 2000 SmartFix®

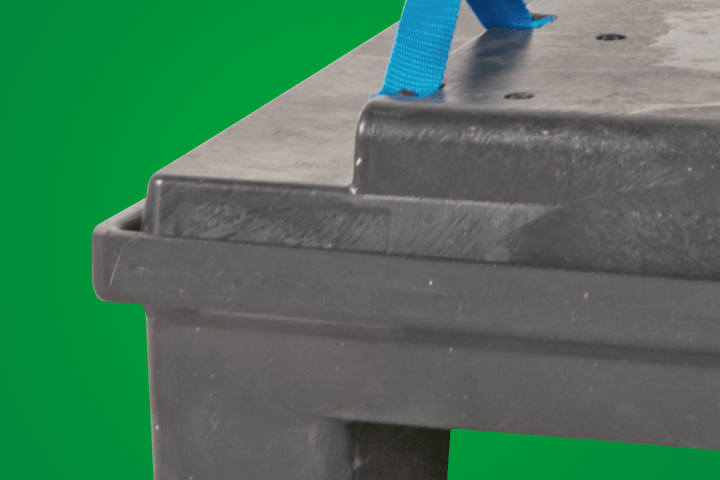

Safe empties unit

Protection of the inner ring
No container damage due to slipping
Safe and stable stacking of containers for full and empty containers

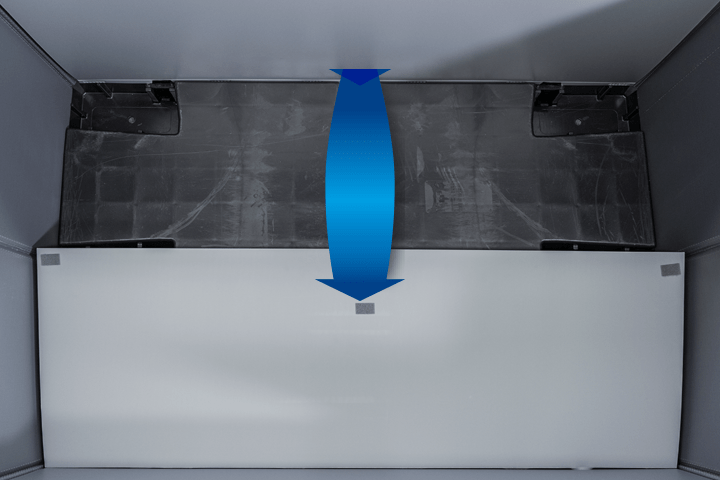

Integrated floor insert*

No loss of the base insert as it is firmly attached to the ring
Locking ring with pallet in the assembled, loaded state

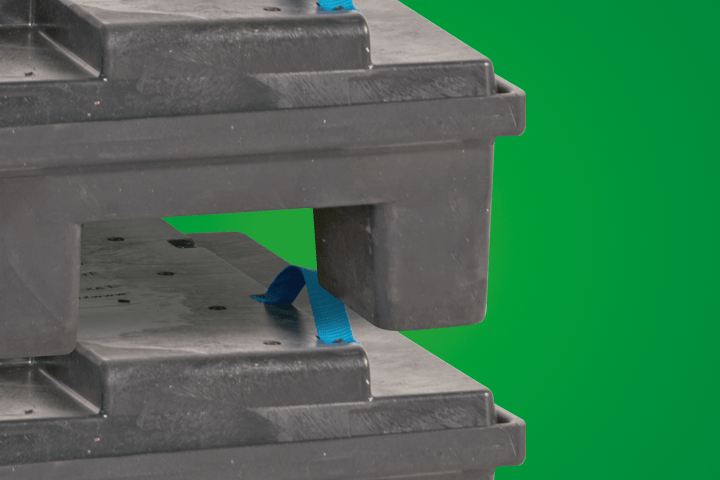

Safe stacking

Fast, safe and uncomplicated stacking of containers in full and empty containers

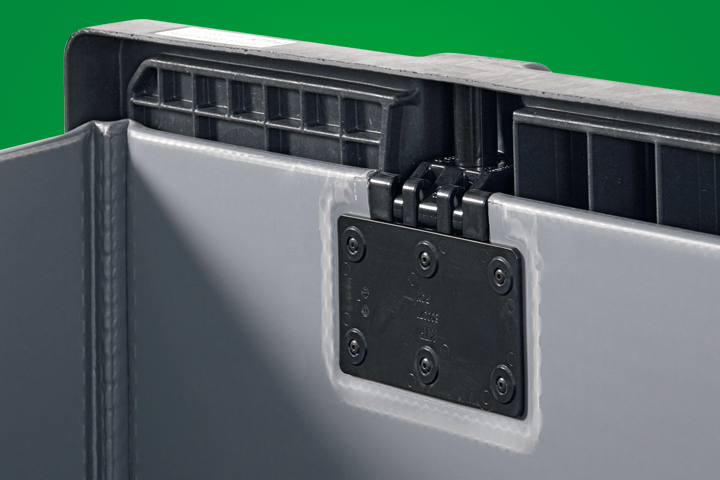

Fixed connection

No more individual parts - lid, ring and pallet form a firmly connected unit
No loss of container parts

External dimensions

800 x 600 x 710mm
Internal dimensions

745 x 546 x 525mm
Volume

214l
Tare weight

17kg
Empties height

200
Folding system

Sandwichfaltung
High rack (without base)

nein

Payload (max.)

200 kg
Stacking load (max.)

600kg
Stacking factor (with max. payload and stacking load)

1 + 3

71% Volume reduction

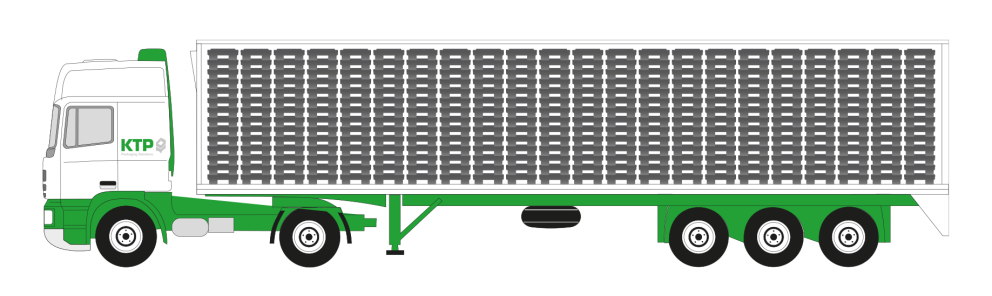

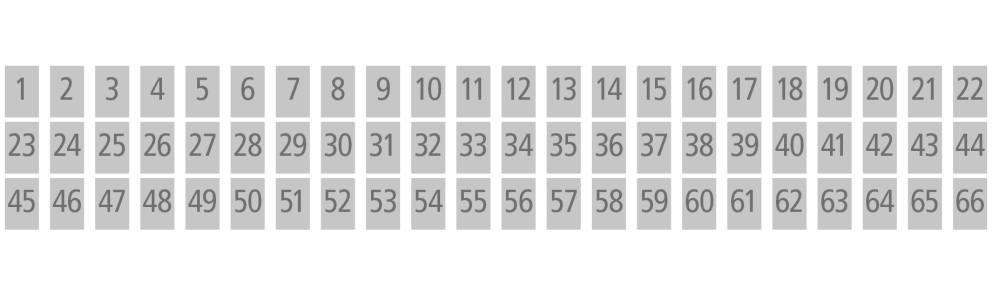

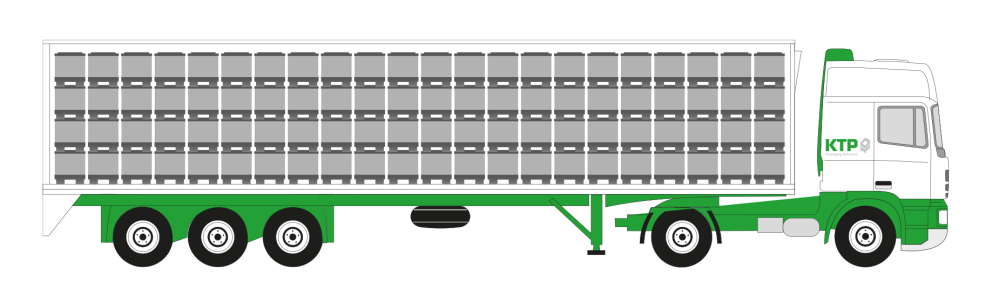

Capacity utilisation in mega-trailer
(13,6 x 2,48 x 3,0 m)

Composition

Three parts to the perfect transport container

Three become one – the patented and multi-award-winning SmartFix® container equipment turns a three-part container into a single unit. The pallet, ring, and lid are firmly connected to each other. Setting up a container has never been so quick and easy. The KTP Sandwich guarantees durability, protection, volume reduction in empties, maximum ergonomics, and easy handling.

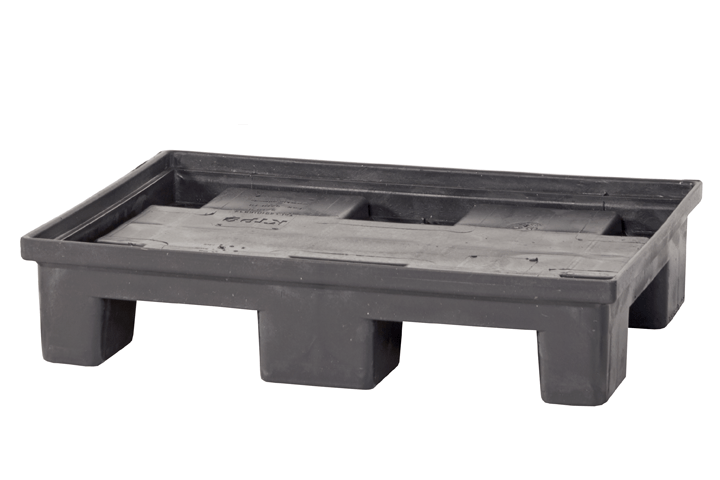

Pallet

Material

PE

Equipment*

Open pallet deck
6 feet
Water drainage holes
Retractable on 4 sides

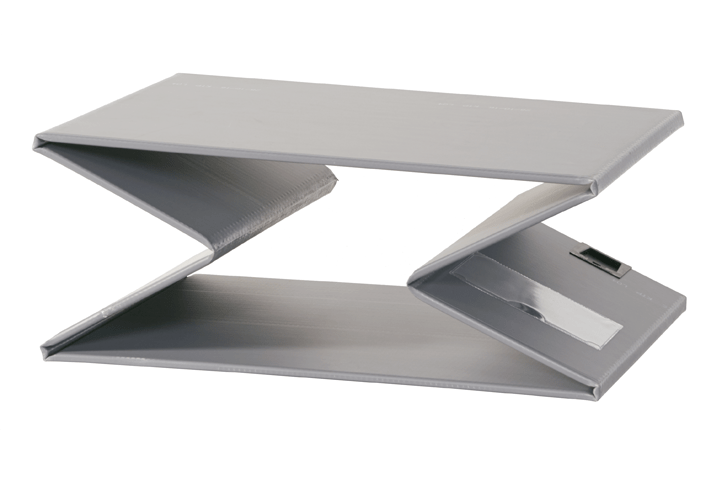

Sleeve

Material

PP
Grammage/Strength

3000 g/m²

Equipment*

M-folding
2 document pockets A5
Integrated floor insert*

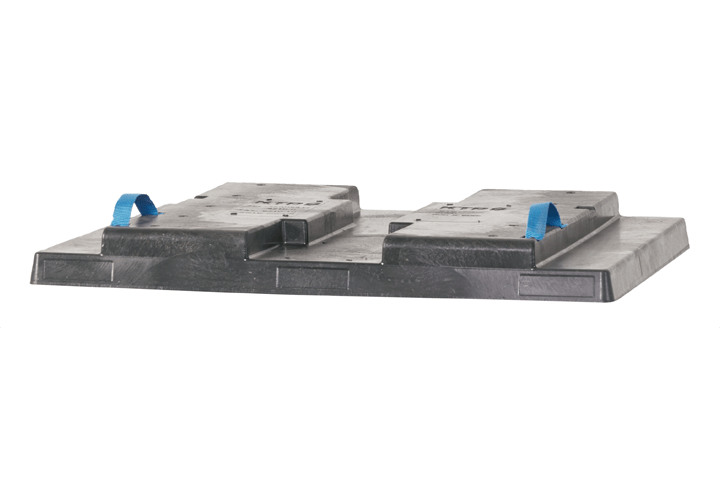

Lid

Material

PE

Equipment*

2 handles (blue)
Suspension hook

*optional; further options available

More container options such as additional loading flaps, individual printing, tracking systems and customised inner packaging solutions are available on request – just contact us.
