1000 x 600 x 695

System 2000 Standard

System 2000 offers perfect storage and transport solutions with a wide range of applications. Thanks to the clever sandwich system folding, a secure and complete packaging unit remains permanently in place for full and empty containers.

Download datasheet

All product benefits at a glance

Robust three-piece with high durability
Low container weight
Non-slip sandwich folding
Intuitive, fast, ergonomic handling
Protection against water and dirt
No manual locking required

Highlights

All product benefits at a glance

Suspension device

Space saving on site
Plus in ergonomics and handling

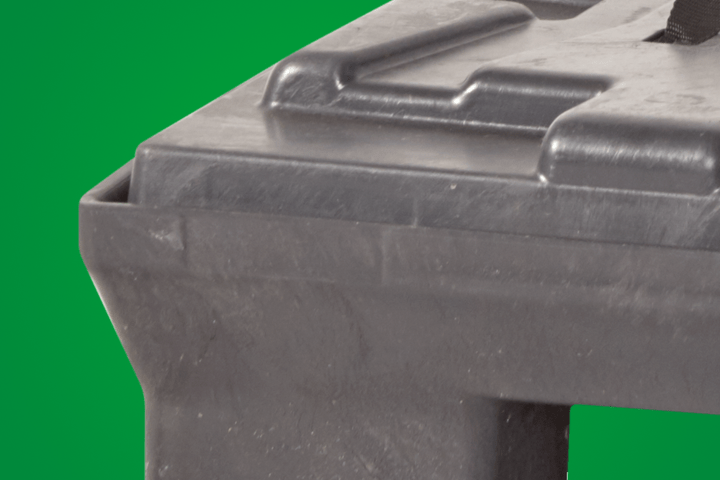

Safe empties unit

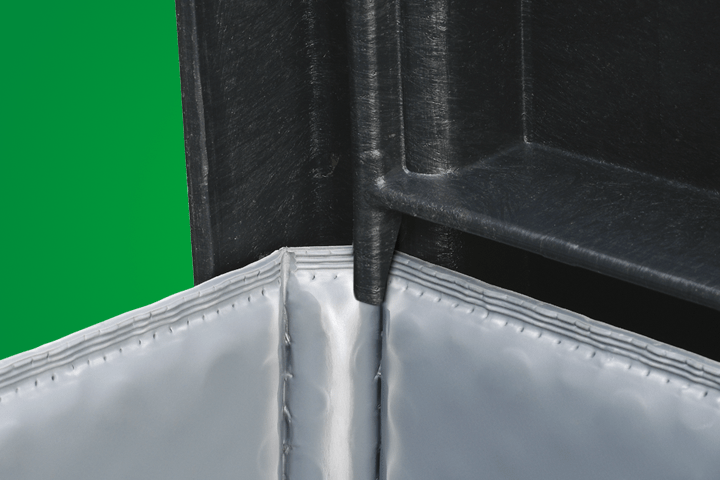

Protection of the inner ring
No container damage due to slipping
Safe and stable stacking of containers for full and empty containers

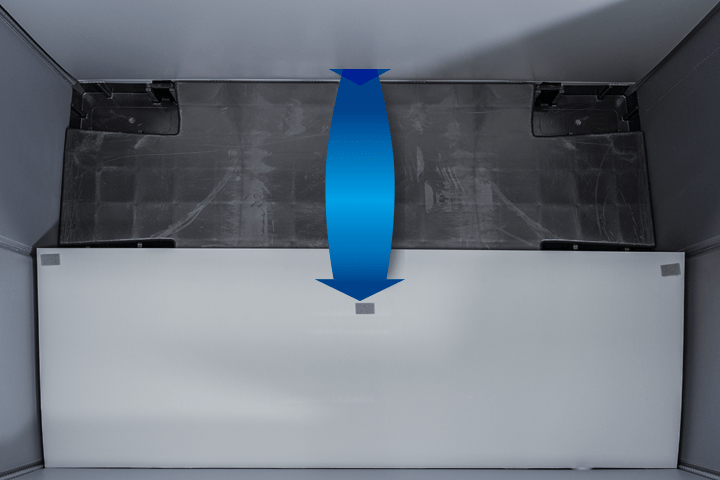

Integrated floor insert*

No loss of the base insert as it is firmly attached to the ring
Locking ring with pallet in the assembled, loaded state

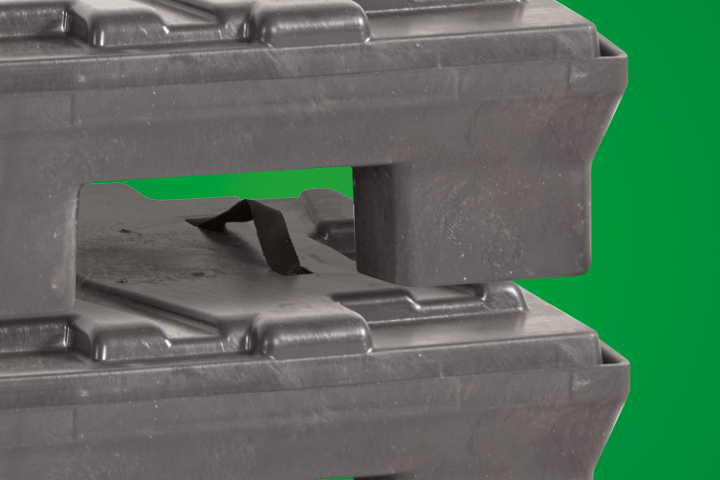

Safe stacking

No binding necessary
Fast, safe and uncomplicated stacking of containers in full and empty containers

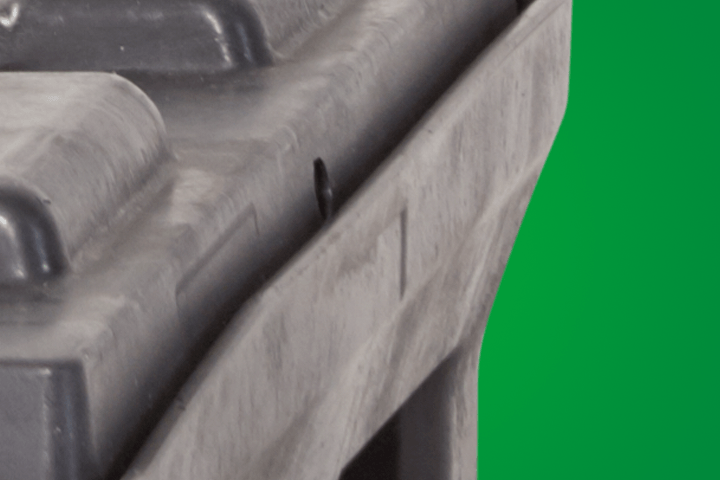

Optical empties inspection

Direct check of completeness of all elements (ring included in empties)

External dimensions

1000 x 600 x 695mm
Internal dimensions

933 x 534 x 515mm
Volume

257l
Tare weight

21kg
Empties height

205
Folding system

Sandwichfaltung
High rack (without base)

nein

Payload (max.)

250 kg
Stacking load (max.)

600kg
Stacking factor (with max. payload and stacking load)

1 + 4

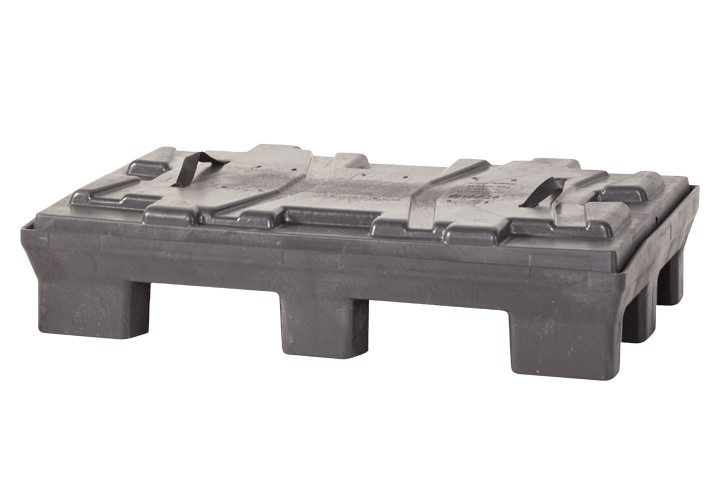

71% Volume reduction

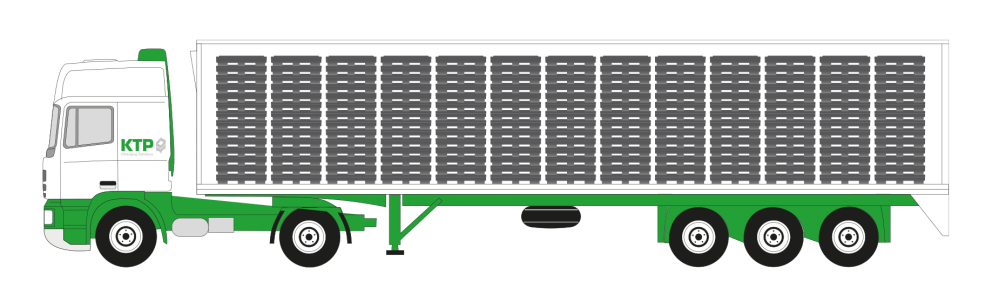

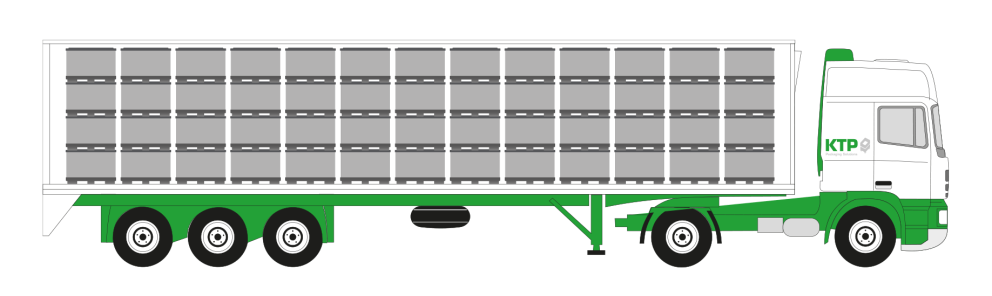

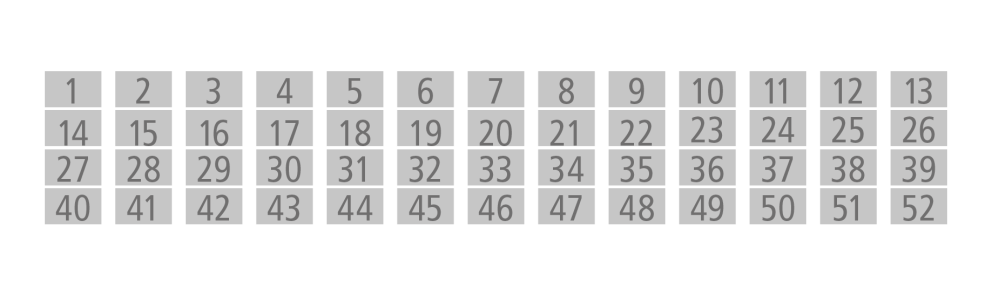

Capacity utilisation in mega-trailer
(13,6 x 2,48 x 3,0 m)

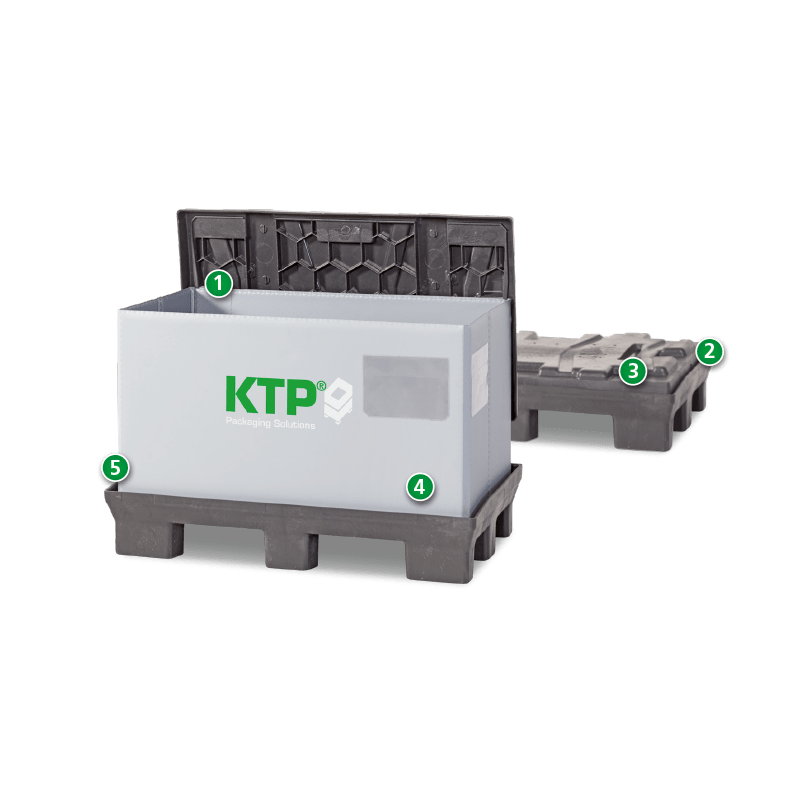

Composition

Three parts to the perfect transport container

KTP offers you a “genuine” three-piece container* which, thanks to its clever sandwich system folding, remains a secure and, above all, complete packaging unit at all times – whether full or empty. The KTP sandwich guarantees durability, protection, volume reduction in empty containers, maximum ergonomics, and easy handling.

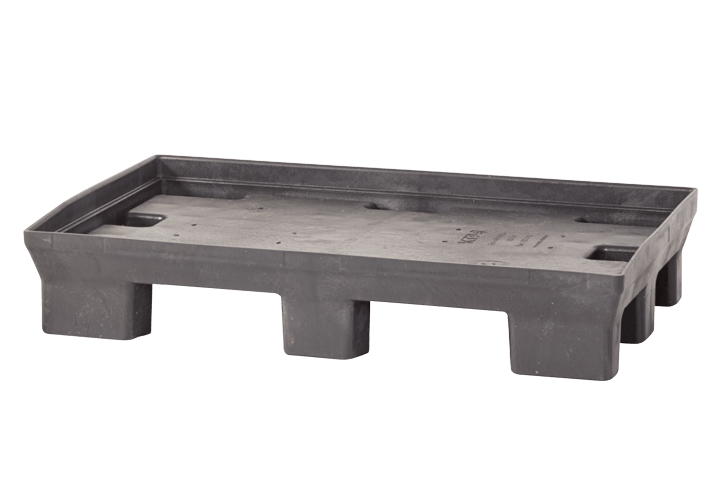

Pallet

Material

PE

Equipment*

Open pallet deck
8 feet
Water drainage holes
Retractable on 4 sides

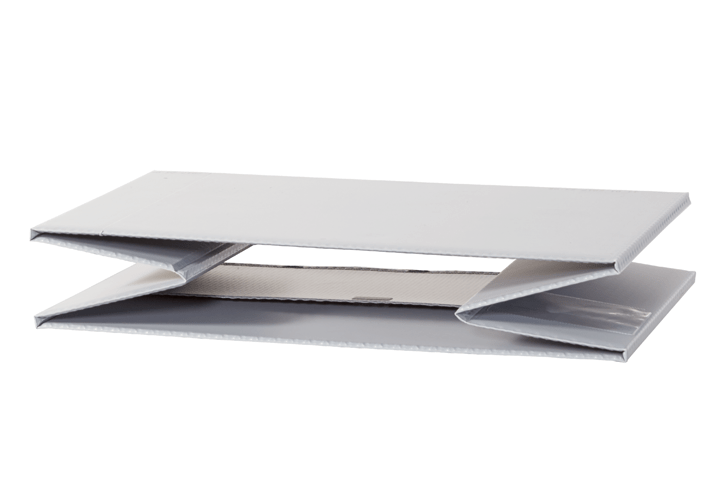

Sleeve

Material

PP
Grammage/Strength

3000 g/m²

Equipment*

M-folding
2 document pockets A5
Integrated floor insert*

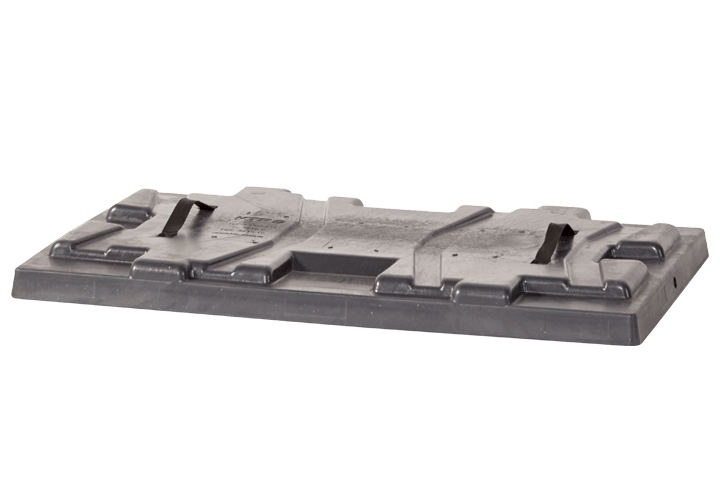

Lid

Material

PE

Equipment*

2 handles (black)
Suspension hook
Empties inspection opening

*optional; further options available

More container options such as additional loading flaps, individual printing, tracking systems and customised inner packaging solutions are available on request – just contact us.
