1230 x 830 x 935 System 2000 Standard

System 2000 offers perfect storage and transport solutions with a wide range of applications. Thanks to the clever sandwich system folding, a secure and complete packaging unit remains permanently in place for full and empty containers.
Download datasheet

All product benefits at a glance

  • Robust three-piece with high durability
  • Low container weight
  • Non-slip sandwich folding
  • Intuitive, fast, ergonomic handling
  • Protection against water and dirt
  • No manual locking required

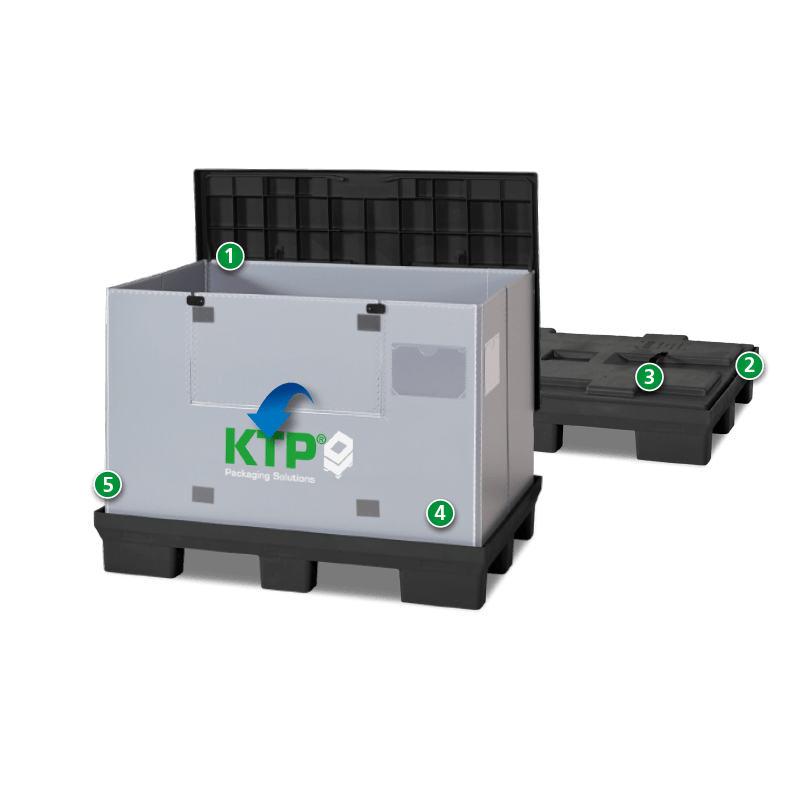

Highlights

All product benefits at a glance

1

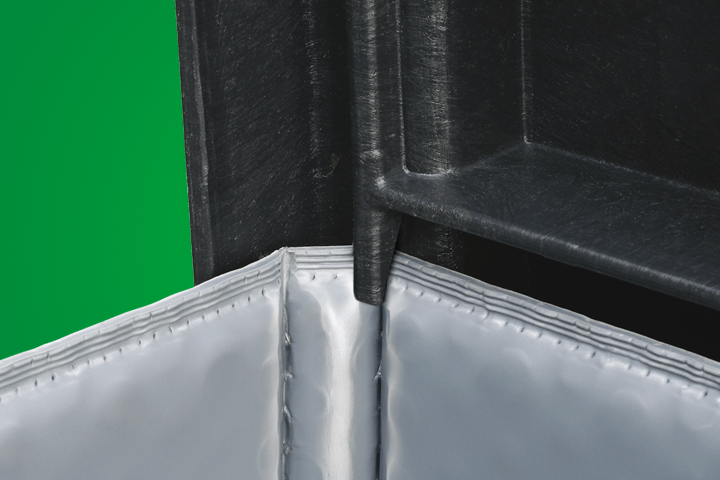

Suspension device
  • Space saving on site
  • Plus in ergonomics and handling
2

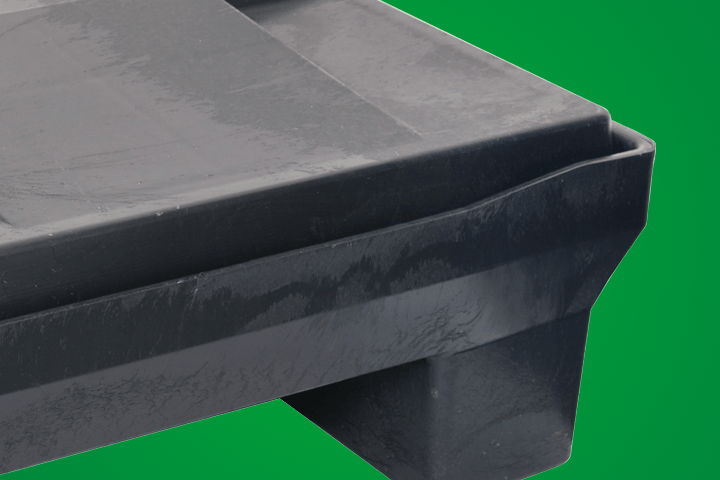

Safe empties unit
  • Protection of the inner ring
  • No container damage due to slipping
  • Safe and stable stacking of containers for full and empty containers
3

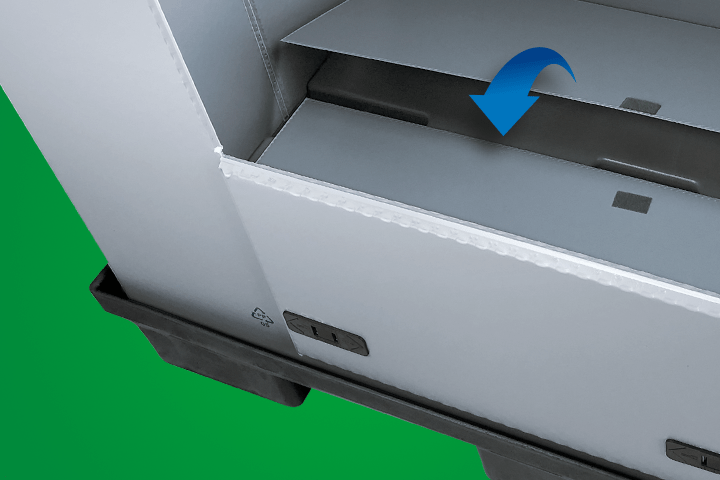

Integrated floor insert*
  • No loss of the base insert as it is firmly attached to the ring
  • Locking ring with pallet in the assembled, loaded state
4

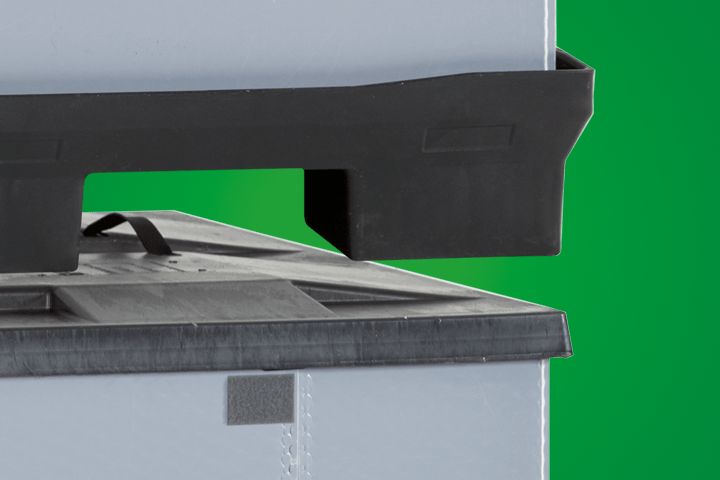

Safe stacking
  • No binding necessary
  • Fast, safe and uncomplicated stacking of containers in full and empty containers
5

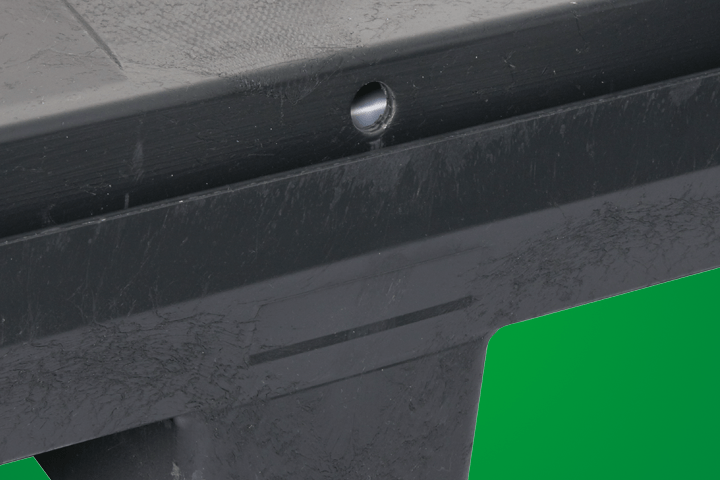

Optical empties inspection
  • Direct check of the completeness of all elements (ring included in empties)

Technical data

  • External dimensions
    1230 x 830 x 935mm
  • Internal dimensions
    1170 x 770 x 745mm
  • Volume
    671l
  • Tare weight
    36kg
  • Empties height
    210
  • Folding system
    Sandwichfaltung
  • High rack (without base)
    nein

Loads

  • Payload (max.)
    250 kg
  • Stacking load (max.)
    830kg
  • Stacking factor (with max. payload and stacking load)
    1 + 4

Logistics and transport

  • Return rate
    4.7
  • Volume reduction
    79%
79% Volume reduction

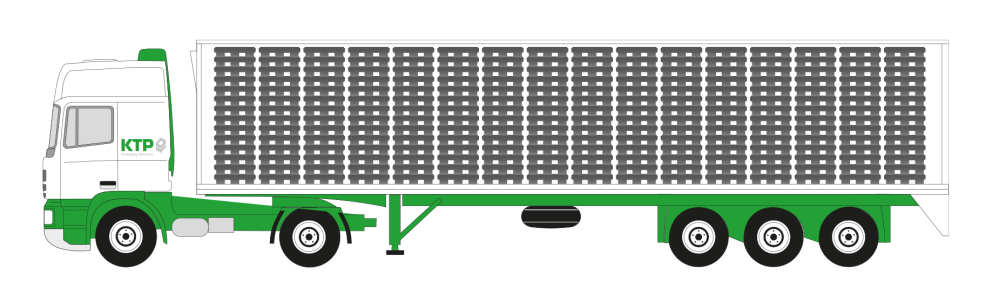

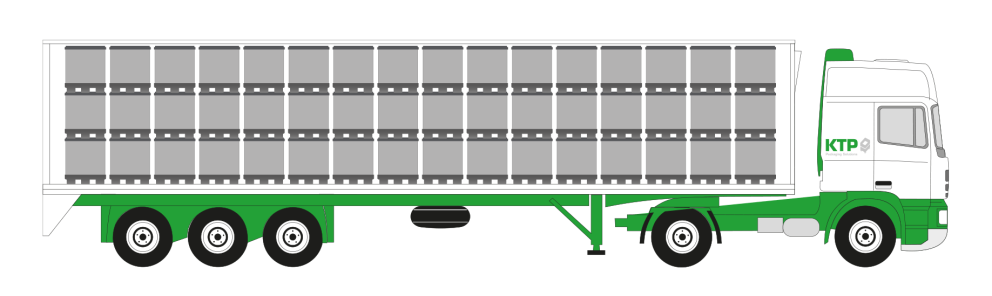

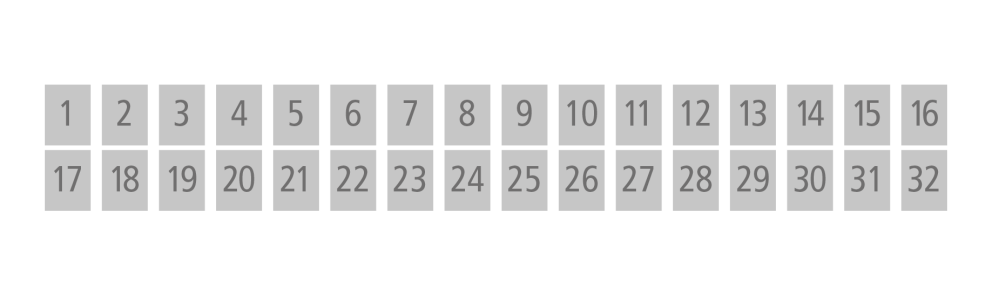

Capacity utilisation in mega-trailer
(13,6 x 2,48 x 3,0 m)

Full: 96

Empty: 448

Storage positions: 32

Composition

Three parts to the perfect transport container

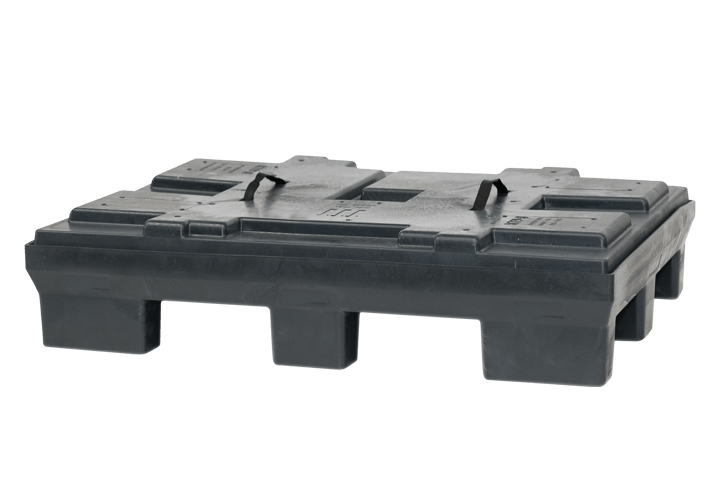

KTP offers you a “genuine” three-piece container* which, thanks to its clever sandwich system folding, remains a secure and, above all, complete packaging unit at all times – whether full or empty. The KTP sandwich guarantees durability, protection, volume reduction in empty containers, maximum ergonomics, and easy handling.

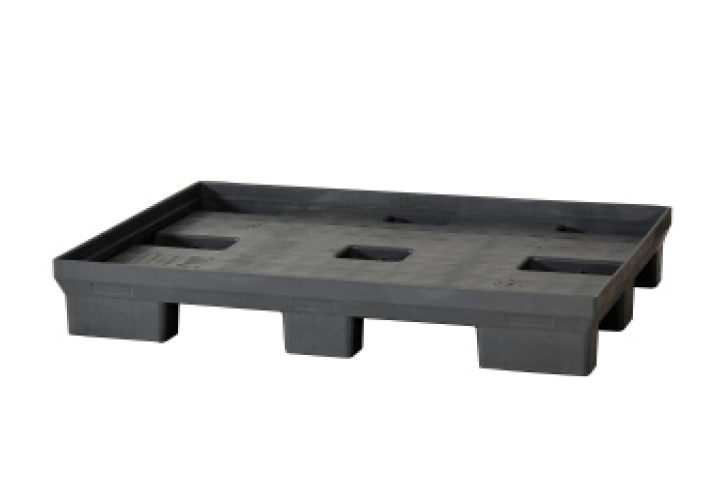

Pallet

  • Material
    PE

Equipment*

  • Open pallet deck
  • 9 feet
  • Water drainage holes
  • Retractable on 4 sides

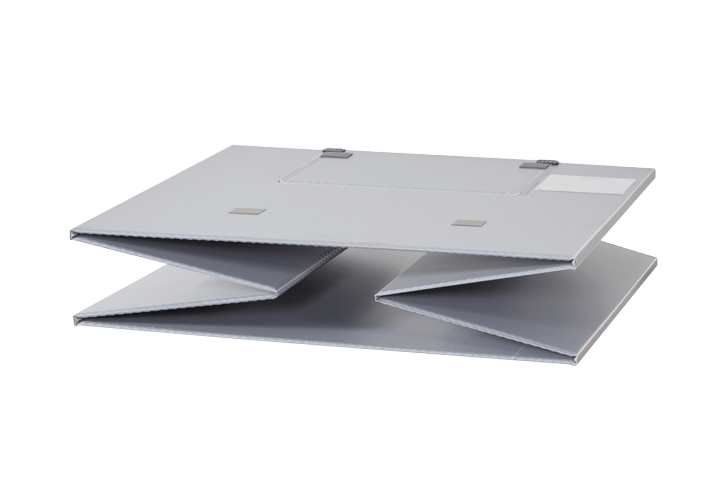

Sleeve

  • Material
    PP
  • Grammage/Strength
    3000 g/m²

Equipment*

  • M-folding
  • 2 document pockets A5
  • Integrated floor insert*

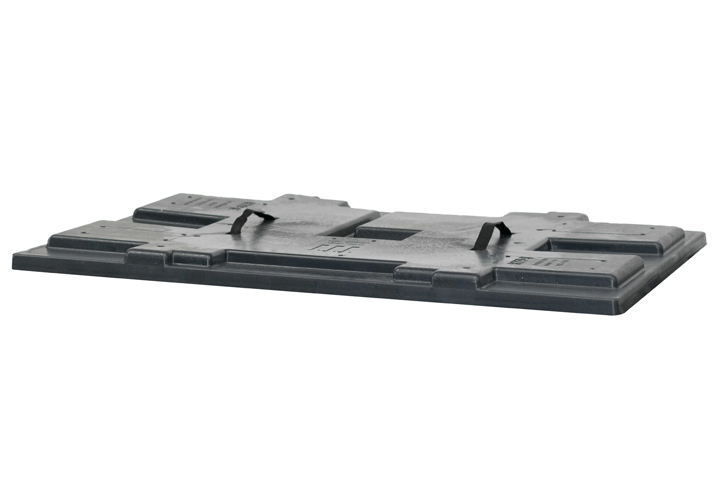

Lid

  • Material
    PE

Equipment*

  • 2 handles (black)
  • Suspension hook
  • Empties inspection opening

*optional; further options available

More container options such as additional loading flaps, individual printing, tracking systems and customised inner packaging solutions are available on request – just contact us.

Four good reasons to choose the transport container from KTP

Label depicting a shield with weights and the text "STACKING LOAD WITH DOUBLE SAFETY" and "TESTED AT -20 °C to +50 °C."
