1200 x 800 x 950 System 2000-H Standard-Kufen EuroStack 128

System 2000 offers perfect storage and transport solutions with a wide range of applications. Thanks to the clever sandwich system folding, a secure and complete packaging unit remains permanently in place for full and empty containers.

Download datasheet

All product benefits at a glance

Robust three-piece with high durability
Ideal for high-bay racking and conveyor systems
High payloads possible
Non-slip sandwich folding
Intuitive, fast, ergonomic handling
Protection against water and dirt

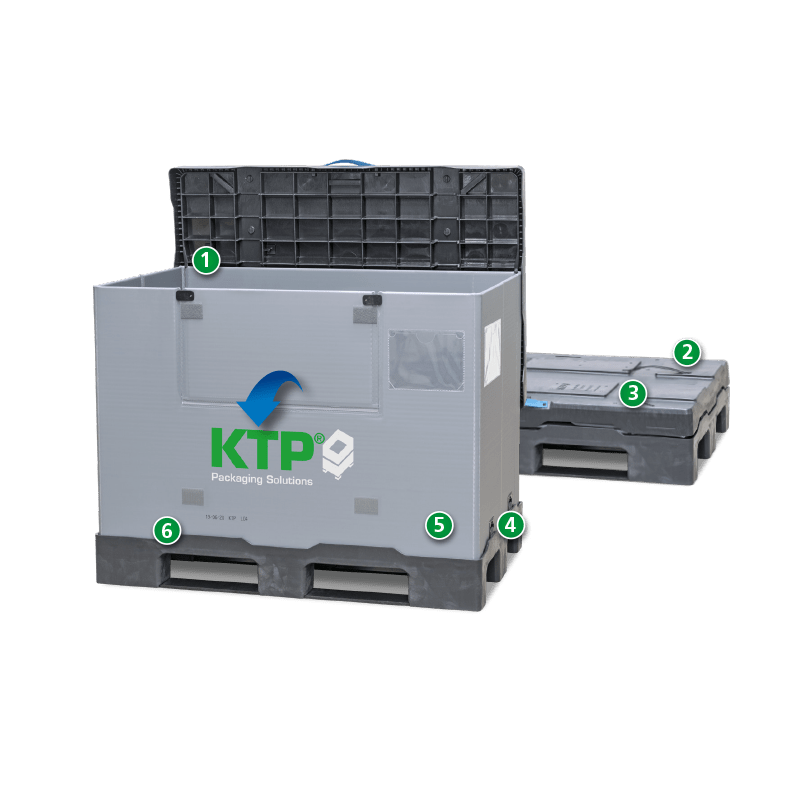

Highlights

All product benefits at a glance

Suspension device

Space saving on site
Plus in ergonomics and handling

A product image of 1200 x 800 x 950 System 2000-H Standard-Kufen EuroStack 128

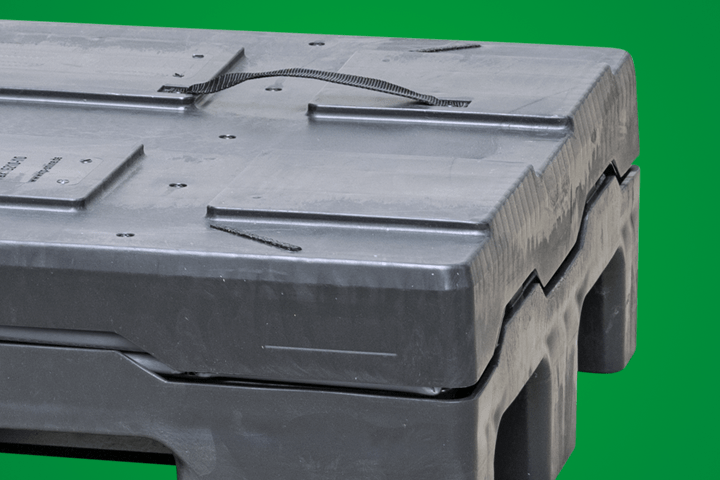

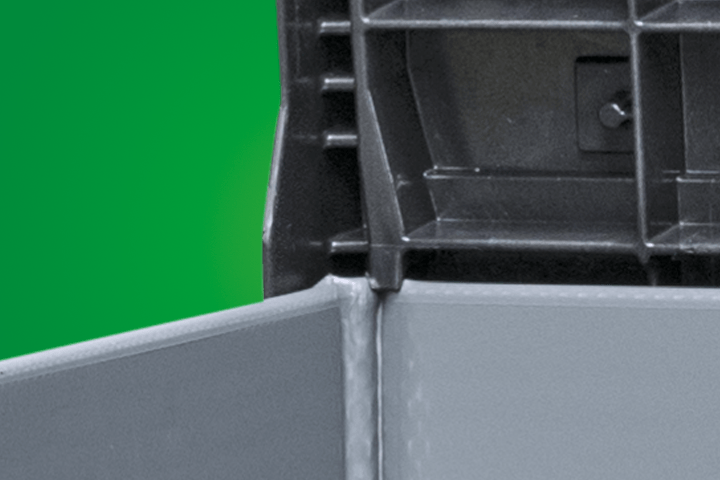

Safe empties unit

Interlocking of pallet and lid
Protection of the inner ring
No container damage due to slipping
Safe and stable stacking of containers for full and empty containers

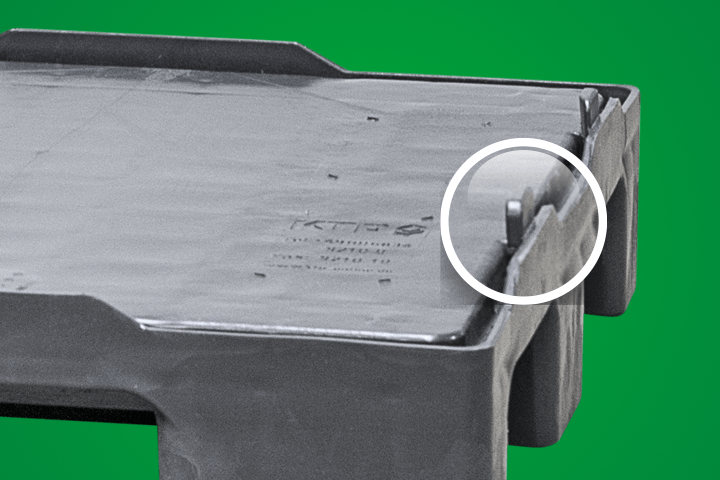

Closed pallet deck

No floor insert required
No soiling
Automatic locking
Snap-in principle for stable fixation

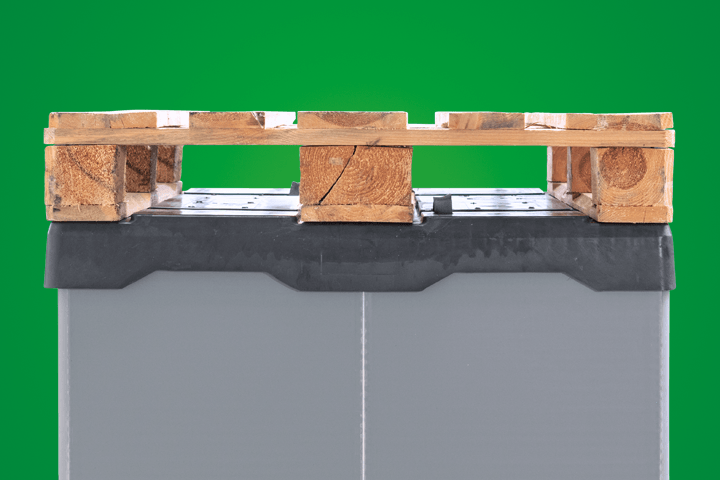

High compatibility

Stacking compatible with Euro pallets and VDA lids due to identical basic dimensions
Use on conveyor systems on which Euro pallets are used

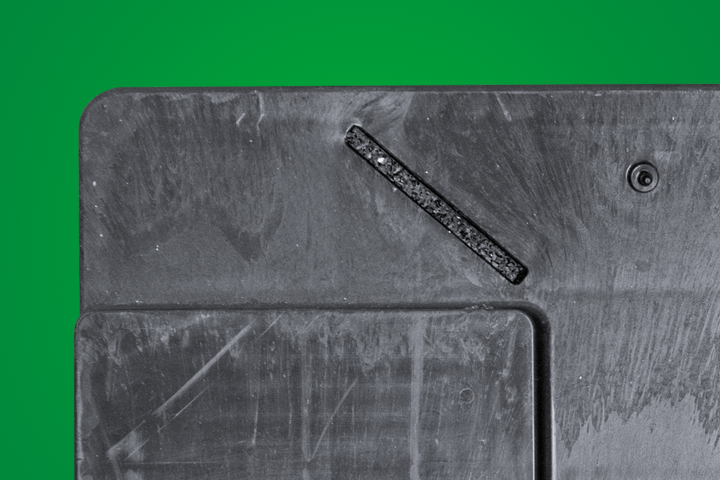

Anti-slip finish

6 rubber lips in the lid
No slipping of stacked containers; also in combination with wooden pallet

External dimensions

1200 x 800 x 950mm
Internal dimensions

1156 x 756 x 747mm
Volume

653l
Tare weight

47kg
Empties height

245
Folding system

Sandwichfaltung
High rack (without base)

Payload (max.)

500 kg
Stacking load (max.)

800kg
Stacking factor (with max. payload and stacking load)

1 + 2

75% Volume reduction

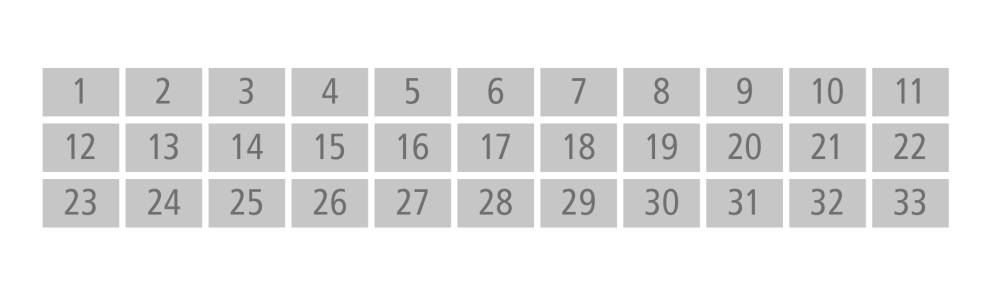

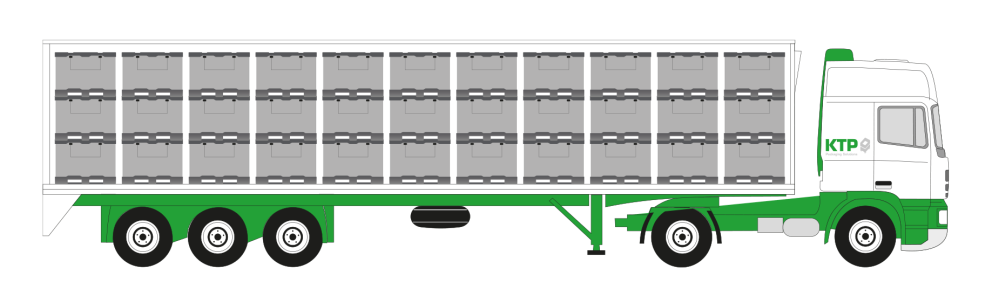

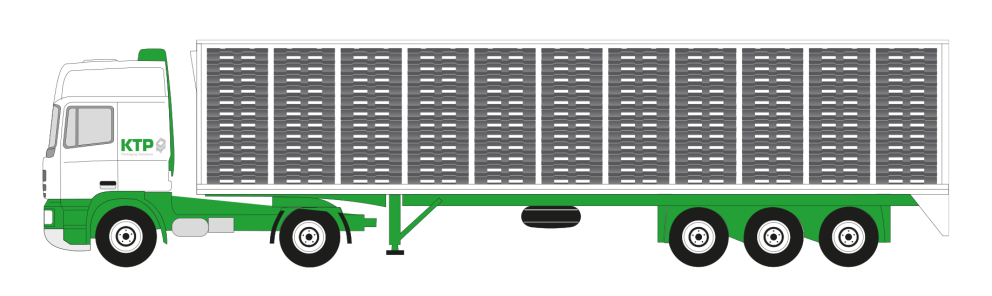

Capacity utilisation in mega-trailer
(13,6 x 2,48 x 3,0 m)

Composition

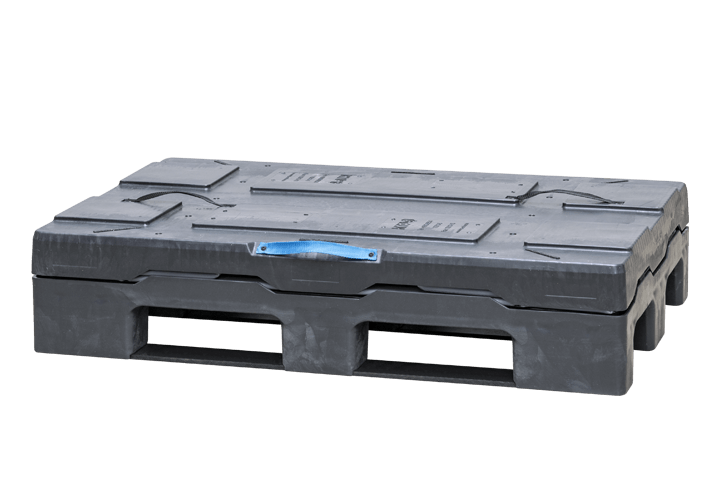

Three parts to the perfect transport container

KTP offers you a “genuine” three-piece container* which, thanks to its clever sandwich system folding, remains a secure and, above all, complete packaging unit at all times – whether full or empty. The KTP sandwich guarantees durability, protection, volume reduction in empty containers, maximum ergonomics, and easy handling.

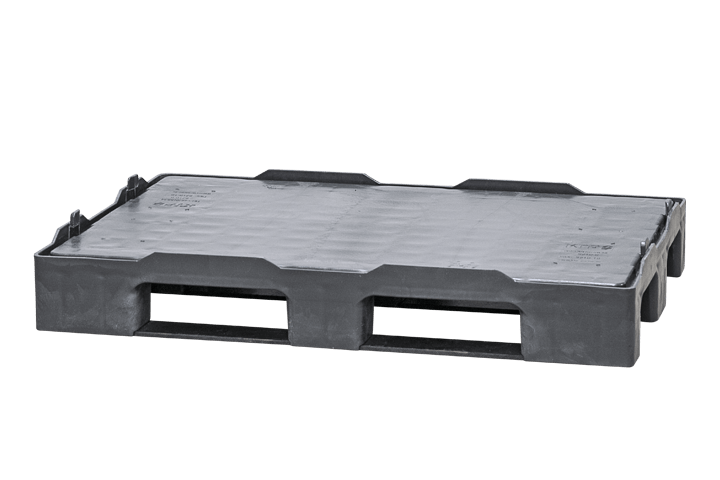

Pallet

Material

PE

Equipment*

Closed pallet deck
9 feet
Water drainage holes
Retractable on 4 sides

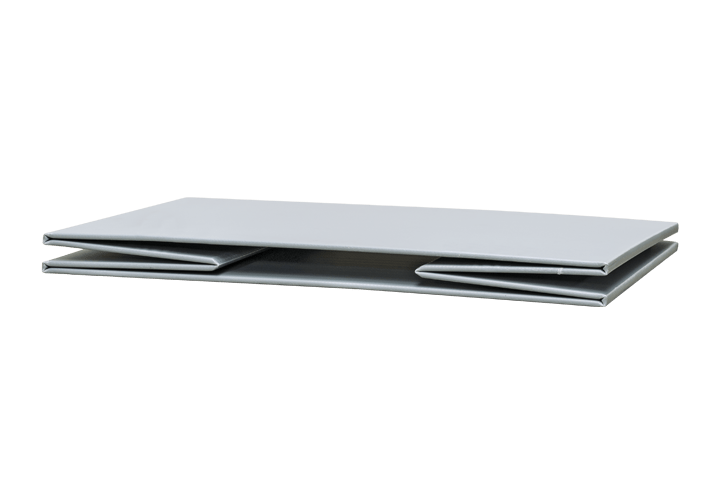

Sleeve

Material

PP
Grammage/Strength

3000 g/m²

Equipment*

M-folding
2 document pockets A5
4 recessed recesses for pallet

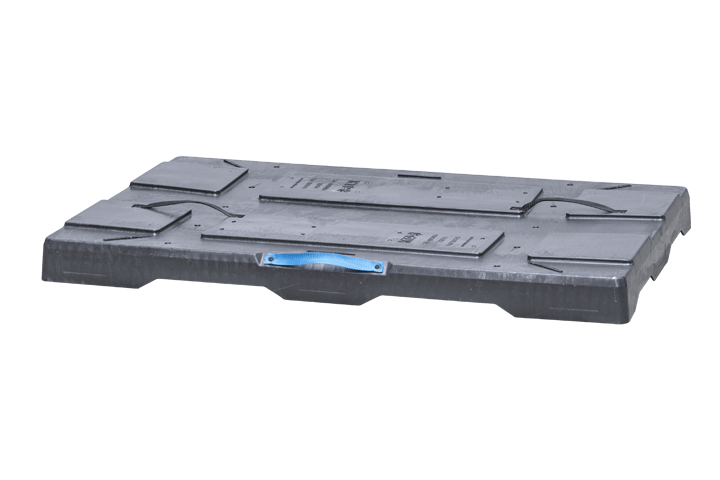

Lid

Material

PE

Equipment*

3 handles (2x black 1x blue)
Suspension hook

*optional; further options available

More container options such as additional loading flaps, individual printing, tracking systems and customised inner packaging solutions are available on request – just contact us.

To container options
