1500 x 1200 x 755 System 2000 SmartFix®

System 2000 offers perfect storage and transportation solutions with a wide range of applications. Our patented and multi-award-winning SmartFix® container equipment firmly connects all components. Setting up a container has never been so quick and easy.
Download datasheet

All product benefits at a glance

  • One-piece with super-fast folding technology
  • Sliding lid
  • Extremely easy handling
  • No loss of individual container parts possible
  • Protection against water and dirt
  • No manual locking necessary

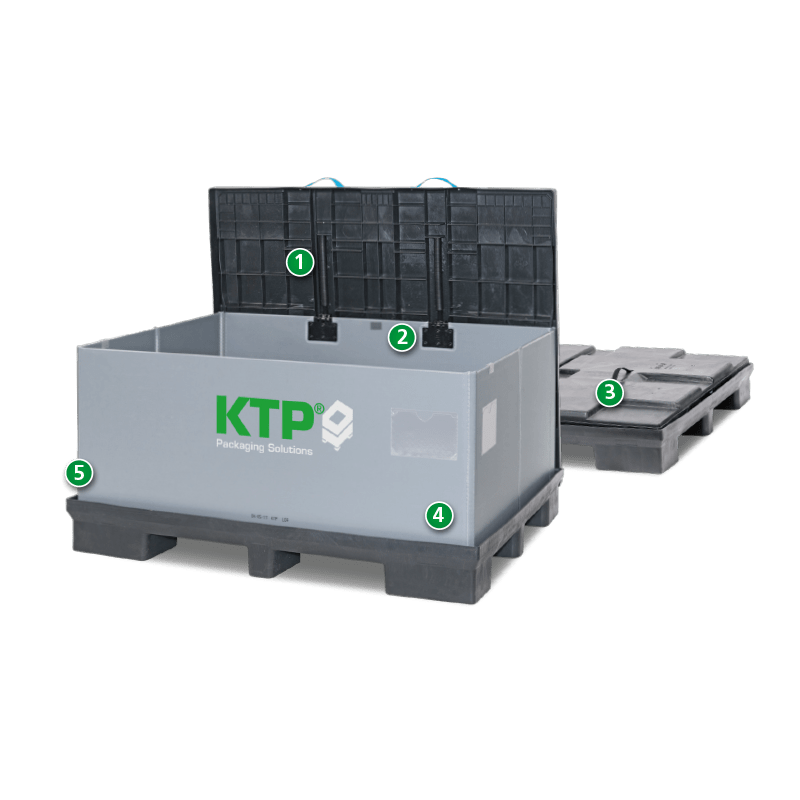

Highlights

All product benefits at a glance

1

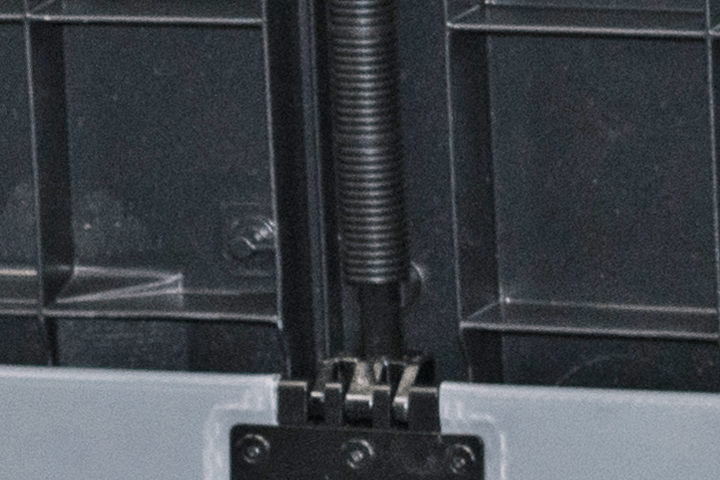

Secure lid guide
  • Recessed guide rails simplify handling - resulting in clean guidance when opening and closing the lid
2

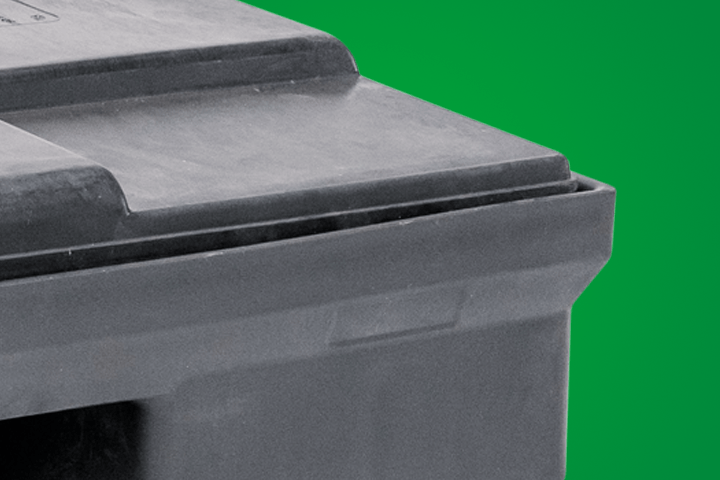

Safe empties unit
  • Protection of the inner ring
  • No container damage due to slipping
  • Safe and stable stacking of containers for full and empty containers
3

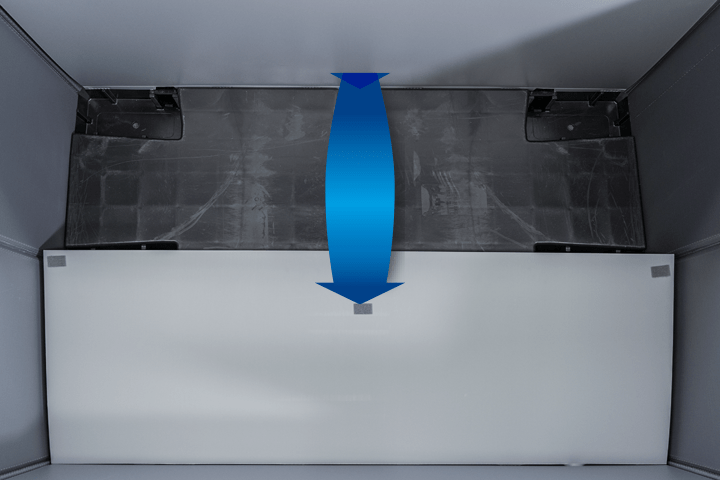

Integrated floor insert*
  • No loss of the base insert as it is firmly attached to the ring
  • Locking ring with pallet in the assembled, loaded state
4

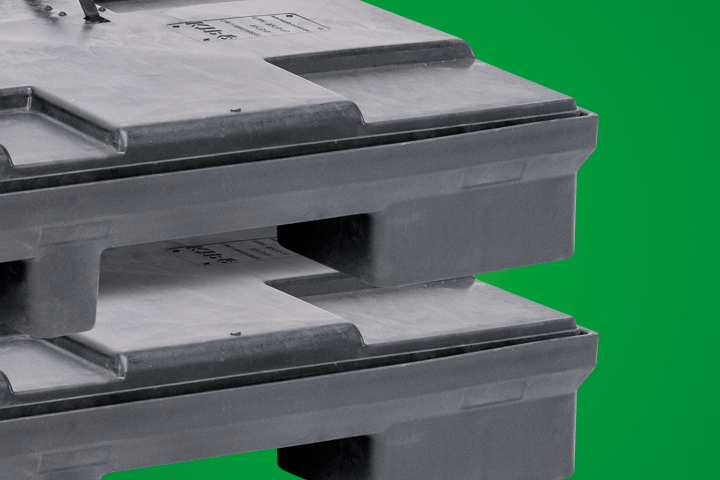

Safe stacking
  • No binding necessary
  • Fast, safe and uncomplicated stacking of containers in full and empty containers
5

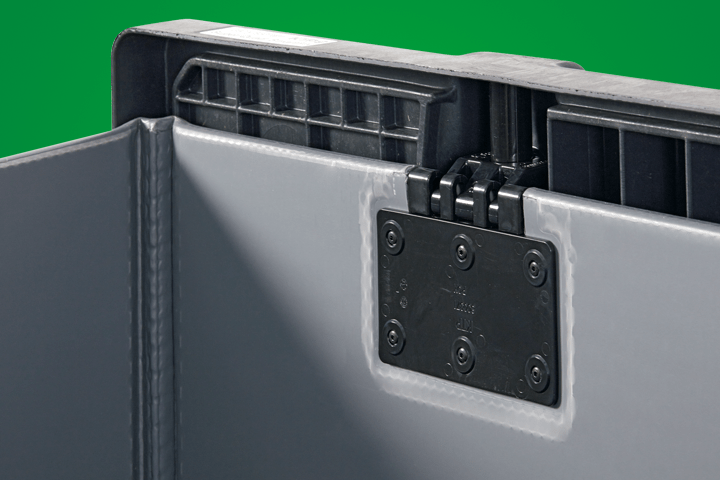

Fixed connection
  • No more individual parts - lid, ring and pallet form a firmly connected unit
  • No loss of container parts

Technical data

  • External dimensions
    1500 x 1200 x 755mm
  • Internal dimensions
    1430 x 1130 x 575mm
  • Volume
    929l
  • Tare weight
    54kg
  • Empties height
    215
  • Folding system
    Sandwichfaltung
  • High rack (without base)
    nein

Loads

  • Payload (max.)
    250 kg
  • Stacking load (max.)
    1200kg
  • Stacking factor (with max. payload and stacking load)
    1 + 4

Logistics and transport

  • Return rate
    3.5
  • Volume reduction
    71%
71% Volume reduction

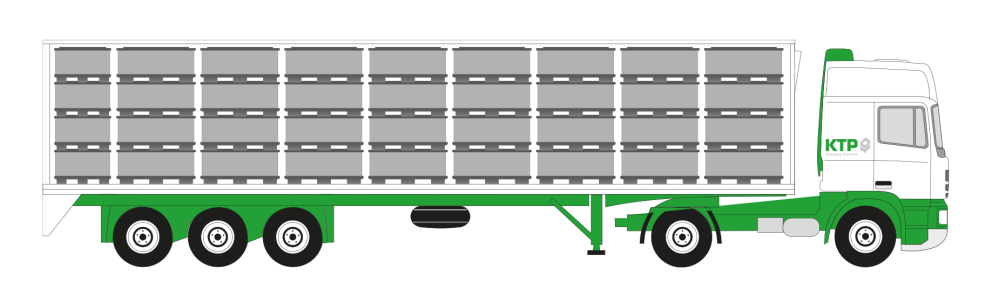

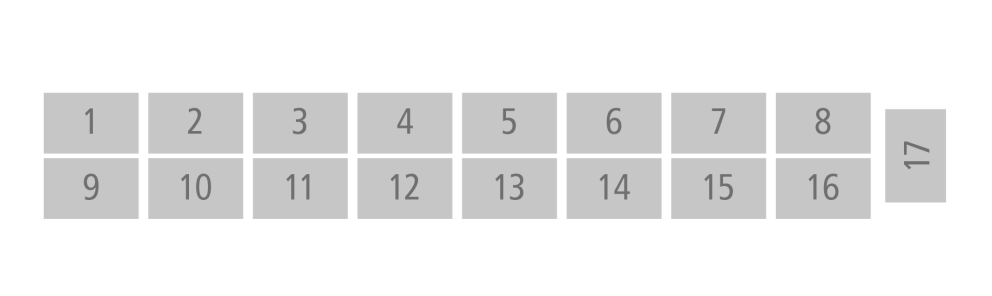

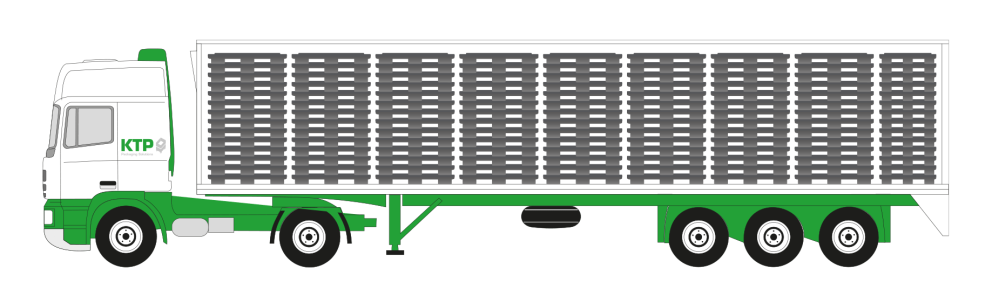

Capacity utilisation in mega-trailer
(13,6 x 2,48 x 3,0 m)

Full: 72

Empty: 234

Storage positions: 18

Composition

Three parts to the perfect transport container

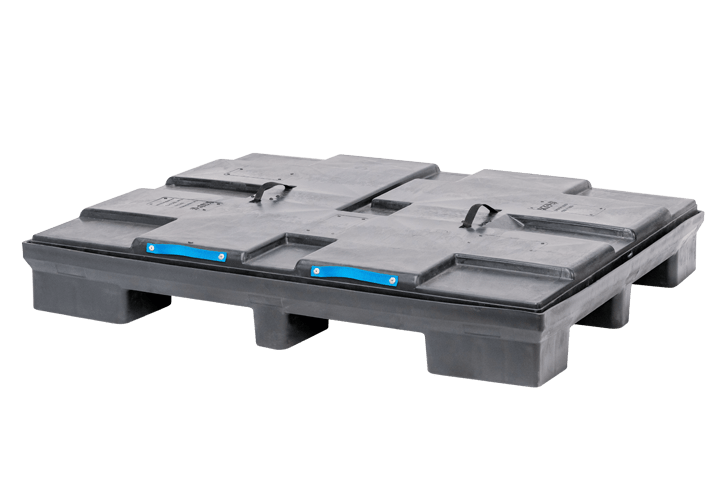

Three become one – the patented and multi-award-winning SmartFix® container equipment turns a three-part container into a single unit. The pallet, ring, and lid are firmly connected to each other. Setting up a container has never been so quick and easy. The KTP Sandwich guarantees durability, protection, volume reduction in empties, maximum ergonomics, and easy handling.

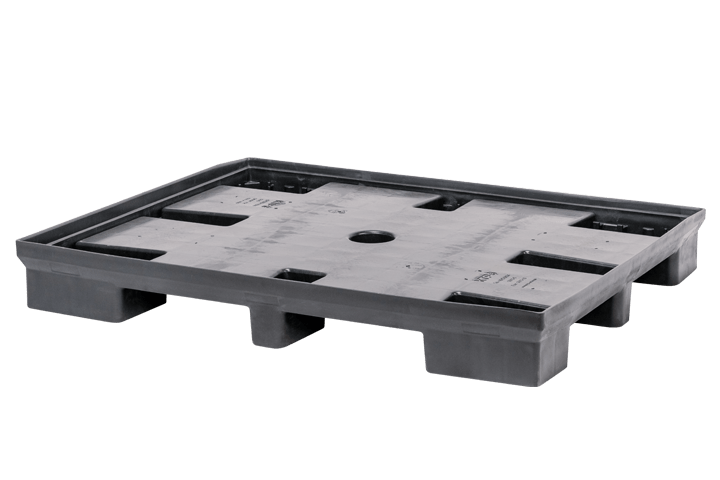

Pallet

  • Material
    PE

Equipment*

  • Open pallet deck
  • 9 feet
  • Water drainage holes
  • Retractable on 4 sides

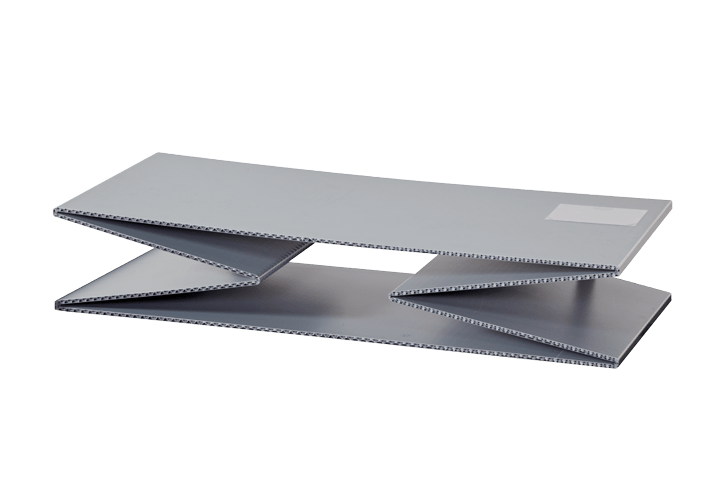

Sleeve

  • Material
    PP
  • Grammage/Strength
    3000 g/m²

Equipment*

  • M-folding
  • 2 document pockets A5
  • Integrated floor insert*

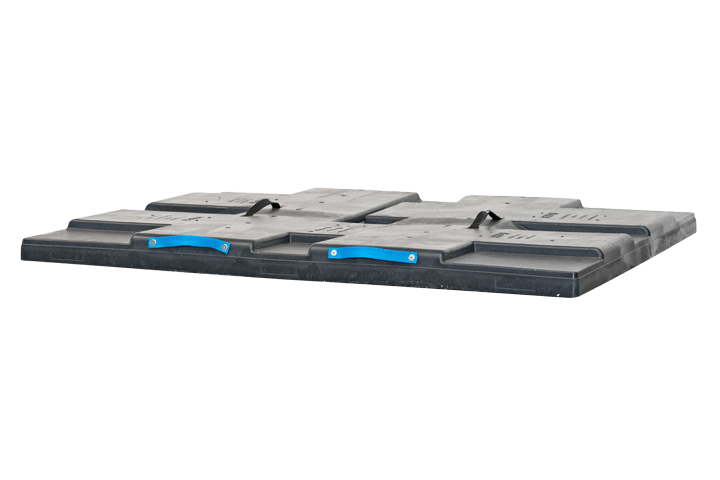

Lid

  • Material
    PE

Equipment*

  • 4 handles (2x black 2x blue)
  • Suspension hook

*optional; further options available

More container options such as additional loading flaps, individual printing, tracking systems and customised inner packaging solutions are available on request – just contact us.

Four good reasons to choose the transport container from KTP

Label depicting a shield with weights and the text "STACKING LOAD WITH DOUBLE SAFETY" and "TESTED AT -20 °C to +50 °C."
