1200 x 800 x 950 System 2000-H SmartFix®- EuroStack 128 SmartFix®

System 2000 offers perfect storage and transportation solutions with a wide range of applications. Our patented and multi-award-winning SmartFix® container equipment firmly connects all components. Setting up a container has never been so quick and easy.

Download datasheet

EU Declaration of conformity

All product benefits at a glance

One-piece with super-fast folding technology
Reusable system
Ideal for high-bay racking and conveyor systems
High payloads possible
Extremely easy handling
Closed pallet deck
No loss of individual container parts possible
Protection against water and dirt

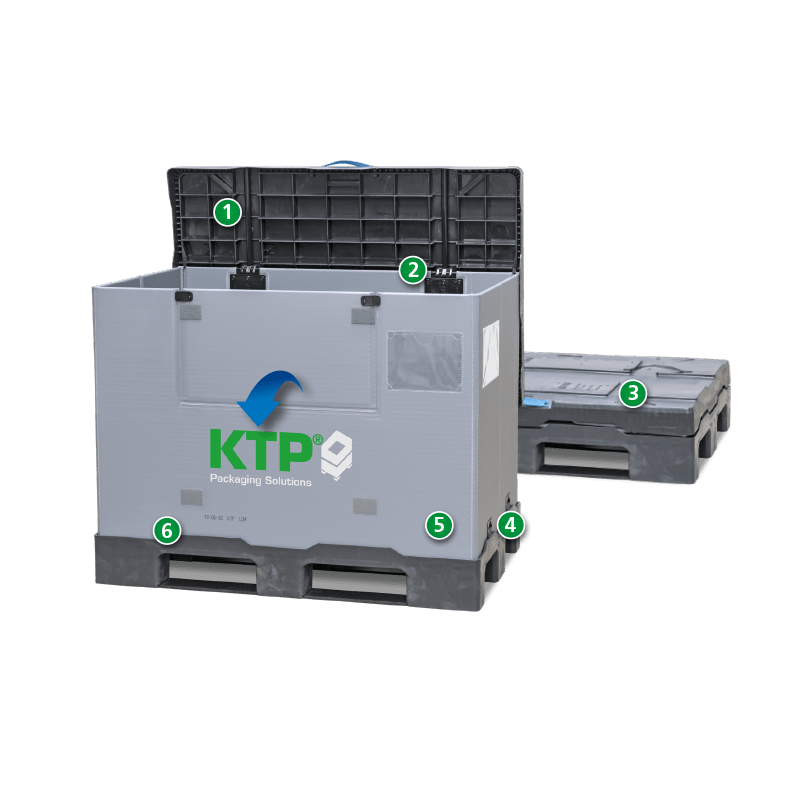

Highlights

All product benefits at a glance

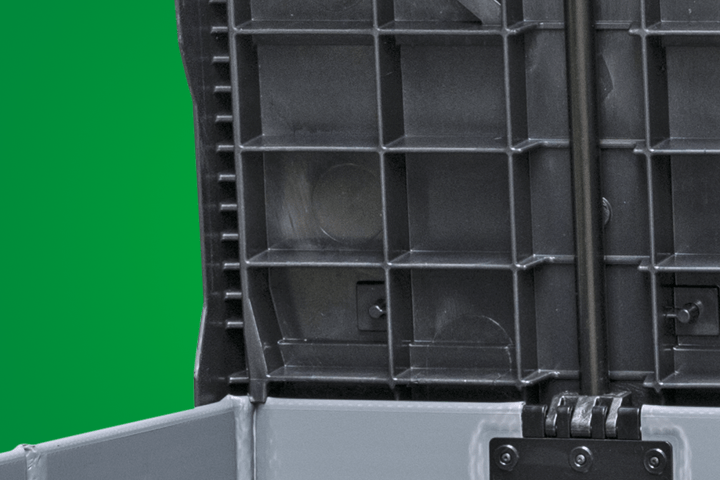

Secure lid guide

Recessed guide rails simplify handling - resulting in clean guidance when opening and closing the lid

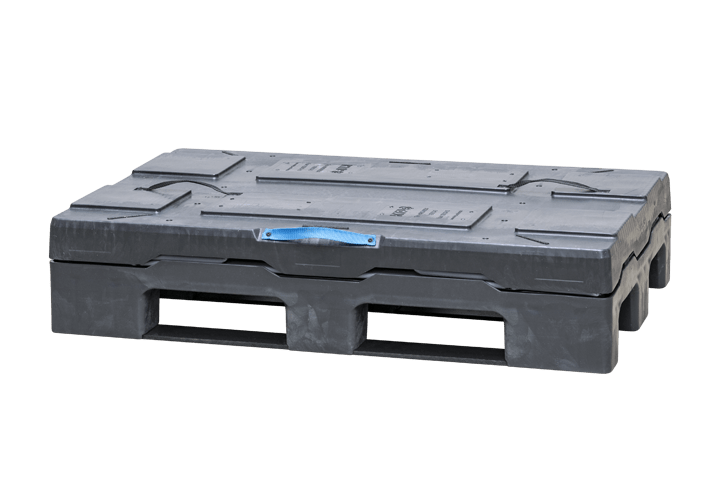

A product image of 1200 x 800 x 950 System 2000-H SmartFix®- EuroStack 128 SmartFix®

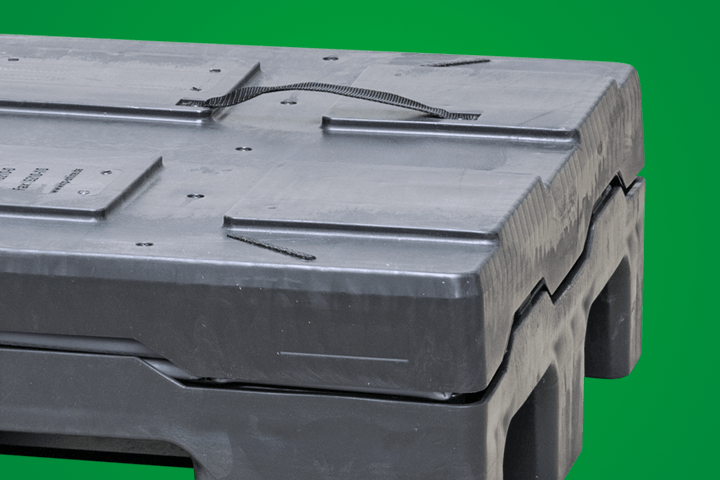

Safe empties unit

Interlocking of pallet and lid
Protection of the inner ring
No container damage due to slipping
Safe and stable stacking of containers for full and empty containers

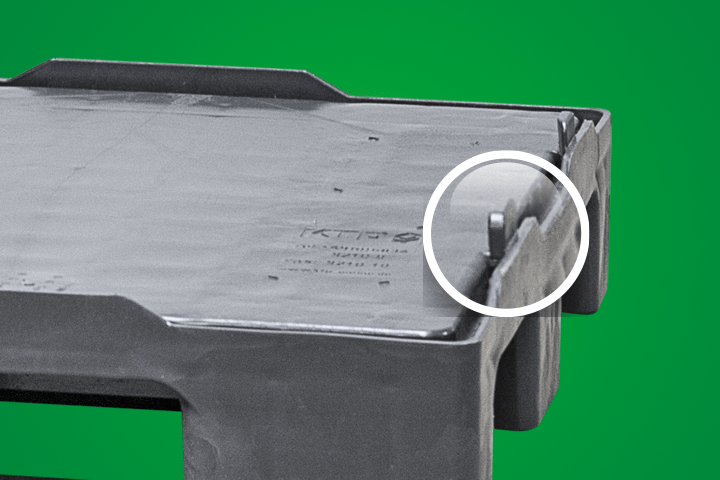

Closed pallet deck

No floor insert required
No soiling
Automatic locking
Snap-in principle for stable fixation

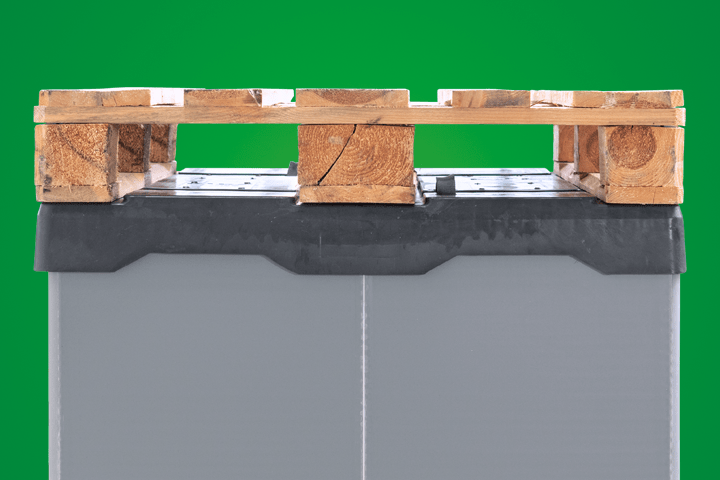

High compatibility

Stacking compatible with Euro pallets and VDA lids due to identical basic dimensions
Use on conveyor systems on which Euro pallets are used

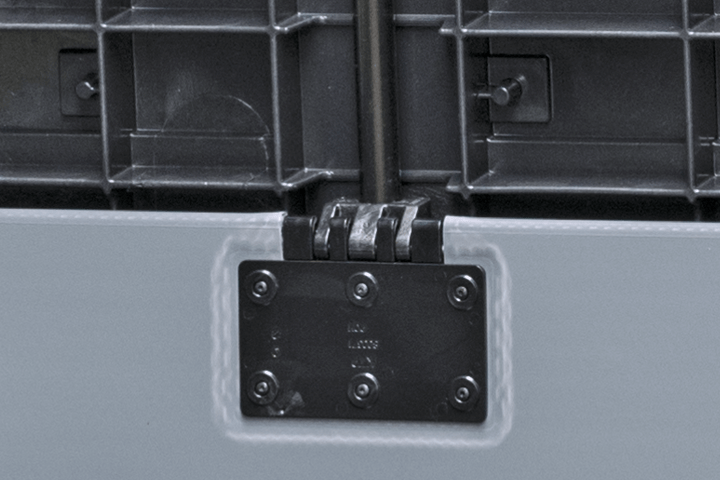

Fixed connection

No more individual parts - lid, ring and pallet form a firmly connected unit
No loss of container parts

External dimensions

1200 x 800 x 950mm
Internal dimensions

1156 x 756 x 747mm
Volume

653l
Tare weight

48kg
Empties height

215
Folding system

Sandwichfaltung
High rack (without base)

Payload (max.)

500 kg
Stacking load (max.)

800kg

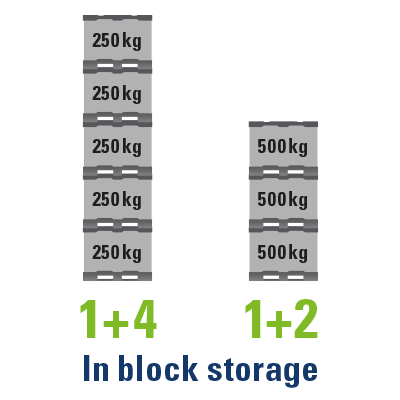

Stacking factor (with max. payload and stacking load)

1 + 2

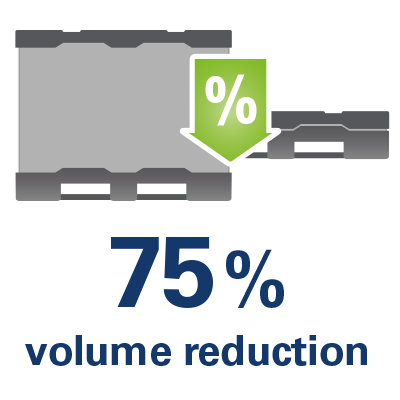

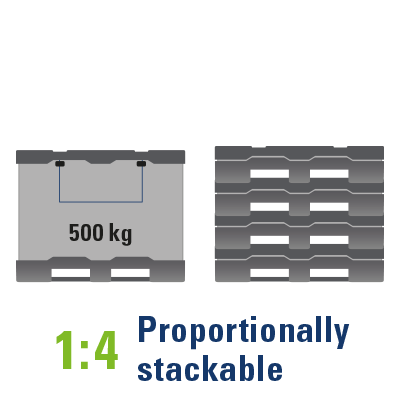

75% Volume reduction

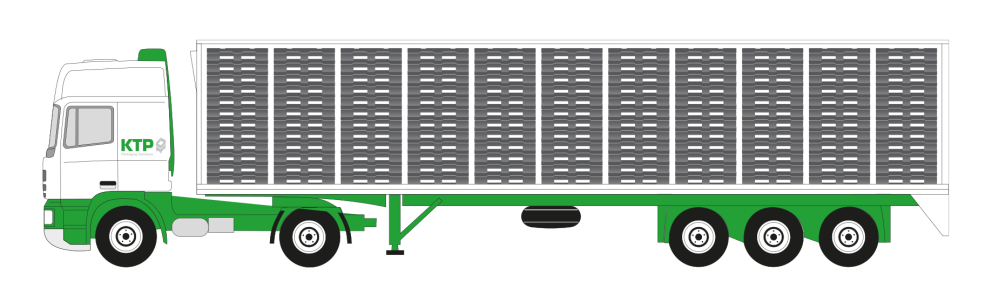

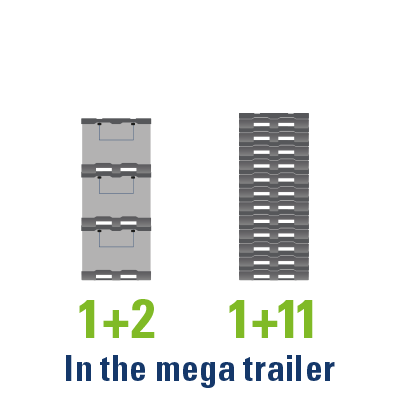

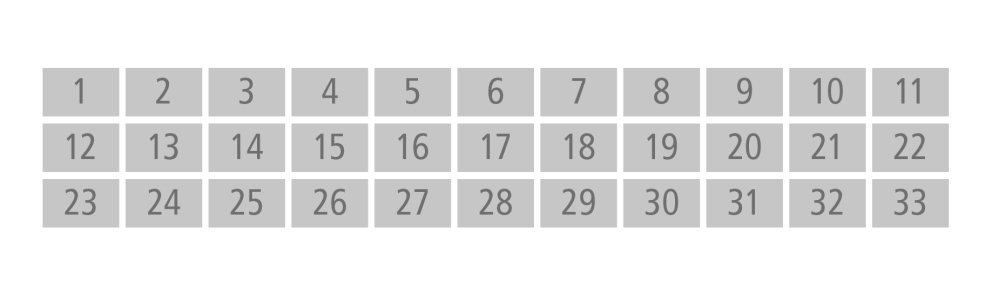

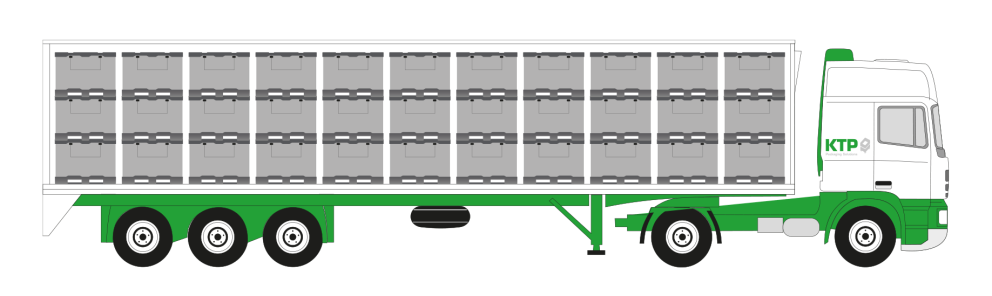

Capacity utilisation in mega-trailer
(13,6 x 2,48 x 3,0 m)

Composition

Three parts to the perfect transport container

Three become one – the patented and multi-award-winning SmartFix® container equipment turns a three-part container into a single unit. The pallet, ring, and lid are firmly connected to each other. Setting up a container has never been so quick and easy. The KTP Sandwich guarantees durability, protection, volume reduction in empties, maximum ergonomics, and easy handling.

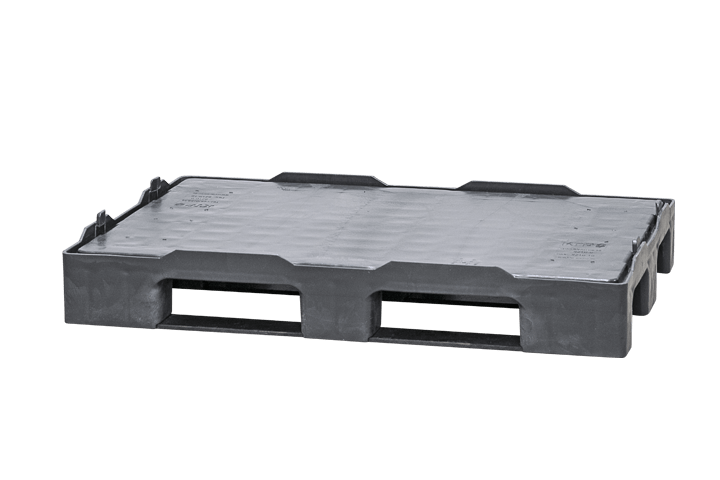

Pallet

Material

PE

Equipment*

Closed pallet deck
9 feet
Water drainage holes
Retractable on 4 sides

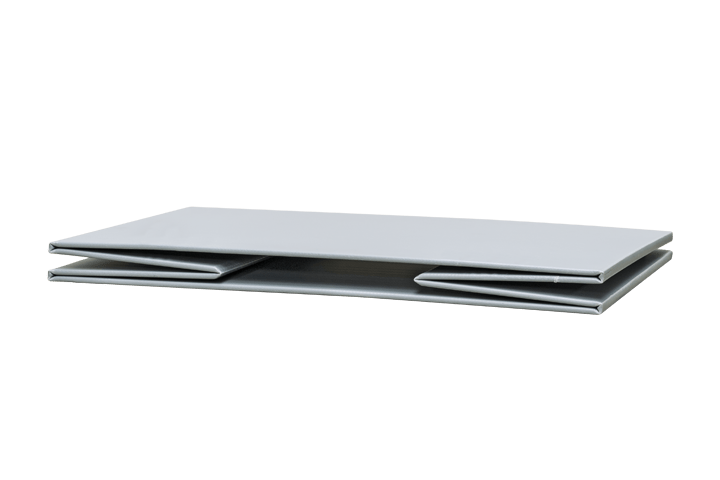

Sleeve

Material

PP
Grammage/Strength

3000 g/m²

Equipment*

M-folding
2 document pockets A5
4 recessed recesses for pallet

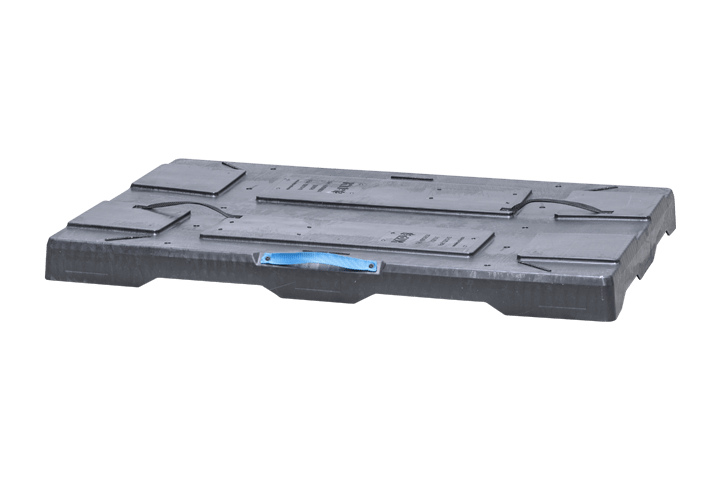

Lid

Material

PE

Equipment*

3 handles (2x black 1x blue)
Suspension hook

*optional; further options available

More container options such as additional loading flaps, individual printing, tracking systems and customised inner packaging solutions are available on request – just contact us.

To container options

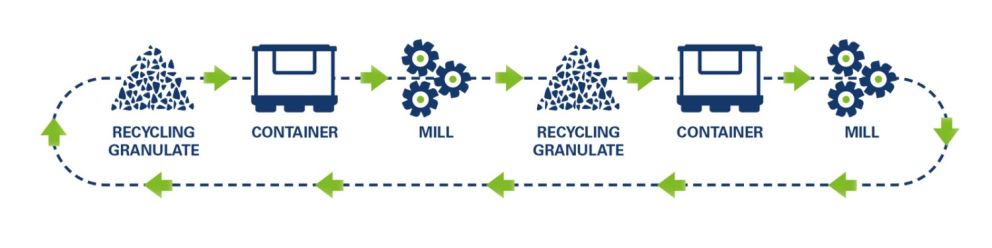

Recyclability end of life

KTP containers are reusable packaging solutions, made of 100% PE-recycled content.

At the end of their life, KTP boxes can be returned to our facility in Bous, Germany, where they are recycled in-house and reintegrated into our pallet and lid production process.

KTPconTeyor and the green idea

Recycling for sustainable logistics.

The recycling material used and long service life of our containers contribute to a very good eco-balance. Volume reduction offers scale effects for transport- and process optimization. CO2 and fine particles are reduced, industrial waste is reused and cardboard boxes are no longer needed. All this has a positive effect on our Corporate Social Responsibility.
